Custom Nickel Plating Shaped Magnets require careful consideration of geometry, magnetic properties, dimensional accuracy, and surface protection. These factors affect how a magnet fits into an assembly and performs under actual operating conditions. For engineers developing custom components, selecting a magnet by grade or external dimensions alone may not be sufficient.
Nickel-plated neodymium magnets combine the magnetic properties of NdFeB material with a protective metallic finish. However, the final specification should reflect the assembly design, working temperature, corrosion exposure, and required holding performance. Understanding these factors helps engineers define practical requirements before prototyping or production.
How Shape and Dimensions Influence Magnetic Performance

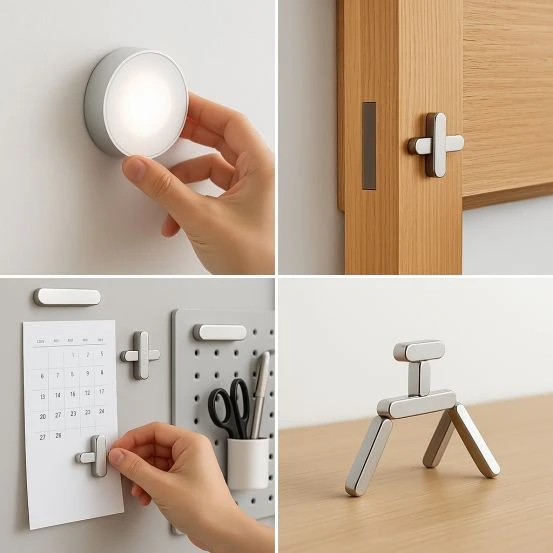

A shaped magnet must fit the mechanical structure while providing the required magnetic field. Unlike standard disc or block magnets, a cross-shaped magnet has a more complex profile, with several arms and contact areas. These features influence the available mounting space, local magnetic field distribution, and mechanical support.
The magnetic performance depends on more than the external shape. Magnet dimensions, magnetization direction, the properties of nearby materials, and the air gap all influence the magnetic circuit. For example, a small gap between the magnet and its mating component can reduce the holding force. A non-magnetic housing or an unsuitable contact surface can also change the circuit's behavior.
When designing custom nickel plating shaped magnets, engineers should define the required contact areas and installation orientation. They should also confirm whether the magnet needs axial, radial, or another specific magnetization direction. The selected direction must match the intended pole arrangement and the surrounding magnetic components.
For complex geometries, magnetic simulation can help assess the proposed design. Nevertheless, simulation results should be checked against prototype measurements because actual dimensions, material properties, and assembly gaps can affect performance.
Selecting the NdFeB Grade and Operating Temperature
NdFeB magnets are available in different grades, each with its own magnetic characteristics and temperature limitations. Two important parameters are remanence (Br) and intrinsic coercivity (Hcj).
Remanence indicates the magnetic flux density remaining after magnetization, while intrinsic coercivity describes resistance to demagnetization. Both values matter, but they serve different purposes. A higher remanence may support greater magnetic output in a suitable design, whereas adequate coercivity helps the magnet resist demagnetizing influences.
Jinconn lists the following reference specifications for its nickel-plated shaped magnet:
| Parameter | Listed specification |
|---|---|
| Magnet grade | N35 |
| Remanence (Br) | ≥11.8 kGs |
| Intrinsic coercivity (Hcj) | ≥12 kOe |
| Operating temperature | ≤80°C |
| Density | ≥7.5 g/cm³ |
These values provide a starting point for technical review. However, engineers should not select a grade based on remanence alone. The required holding force, magnetic circuit, external demagnetizing field, and operating temperature must also be considered.
Temperature deserves particular attention. As the magnet heats up, its magnetic properties change. If the working conditions exceed the suitable range for the selected grade and design, the magnet may experience irreversible performance loss. Therefore, confirm the actual temperature range, heating cycle, and surrounding thermal conditions before finalizing the specification. Jinconn also indicates that high-temperature versions are available for applications requiring further evaluation.
Nickel Plating and Corrosion Protection
NdFeB material requires suitable surface protection in many applications. Nickel plating provides a metallic finish and helps protect the magnet from surface wear and corrosion during normal service. It can be useful where the component needs a consistent appearance and a relatively smooth surface.
However, nickel plating does not make every magnet suitable for every environment. Moisture, salt, chemical exposure, coating damage, and repeated abrasion can affect long-term protection. Performance also depends on coating quality, coverage, and the conditions surrounding the assembled component.
For corrosion-resistant custom nickel plating shaped magnets, engineers should specify the intended environment rather than relying on the coating name alone. Applications involving high humidity, outdoor exposure, cleaning agents, or chemicals may require additional review or an alternative surface treatment.
The coating can also affect the finished dimensions. When an assembly has a tight fit, the drawing should identify the critical dimensions and clarify whether they refer to the magnet substrate or the finished, coated component. This distinction helps prevent interference during assembly and makes inspection criteria clearer.
Dimensional Tolerance and Mechanical Integrity
Dimensional accuracy is especially important when a shaped magnet must fit into a dedicated pocket, slot, or mechanical assembly. If the profile is too large, installation may become difficult. If the fit is too loose, the magnet may move or fail to maintain its intended position.
Jinconn lists a dimensional tolerance of ±0.05 for the featured product. Before applying this value to a production drawing, confirm the unit and the dimensions to which it applies. A general tolerance should not automatically be assumed to cover every feature of a complex shape.
For tight-tolerance custom nickel plating shaped magnets, identify the surfaces and features that control assembly fit. Critical dimensions may need individual tolerances, while less important features can use broader limits. This approach helps balance product requirements with manufacturing and inspection costs.
Mechanical handling is another consideration. NdFeB magnets are hard but brittle, so impact, edge loading, and excessive installation force can cause chipping or fracture. Cross-shaped designs may also contain narrow sections that require attention during handling and assembly. Suitable fixtures and controlled installation methods can reduce the risk of damage.
Magnetic Testing and Quality Verification
A magnet specification should define how performance will be verified. Terms such as holding force, surface magnetic field, and magnetic flux describe different measurements. They are not interchangeable, and their results depend on the test setup.
For example, holding force depends on the mating material, contact area, surface condition, air gap, and loading direction. To compare samples consistently, testing should use a defined mating surface and a repeatable fixture. Where the magnet works inside a housing, testing the complete assembly may provide more relevant results than testing the bare magnet.
Jinconn lists a surface magnetic field of 3,500 Gs and magnetic flux of 2.0 mWb for the featured product. Before using these figures as production acceptance limits, confirm the measurement method, probe position, test fixture, and applicable tolerances.
Quality checks should also cover dimensional measurements, coating appearance, and magnetic orientation where relevant. For repeat orders, buyers and suppliers should agree on the critical characteristics, inspection method, and acceptable variation between batches.
Information Required for a Custom Magnet Specification
A complete technical brief helps the supplier evaluate feasibility and provide a more accurate quotation. For custom nickel plating shaped magnets, buyers should prepare the following information:
•Geometry: 2D drawing, 3D CAD file, sample, and critical dimensions.
•Magnetic requirements: Grade, magnetization direction, required holding force or flux, and test conditions.
•Operating conditions: Temperature range, humidity, chemical exposure, and expected service environment.
•Surface requirements: Nickel plating, appearance, and any additional corrosion-related requirements.
•Production requirements: Order quantity, dimensional tolerances, inspection criteria, and repeat-order expectations.
If some specifications remain undecided, the application details can help guide the initial review. Jinconn supports custom magnet projects based on customer drawings and technical requirements. Confirming the geometry, magnetic targets, coating, and inspection criteria early can reduce avoidable changes during sampling and production.
The key to specifying Custom Nickel Plating Shaped Magnets is to evaluate the magnet as part of the complete assembly. A suitable design must meet the required magnetic performance while fitting the mechanical structure and operating environment. Clear technical requirements give both engineers and purchasing teams a more reliable basis for evaluating samples and planning production.
