Custom Large Cylindrical Magnets For Industrial Mounting And Precision Applications

In industrial equipment and mechanical assemblies, a magnet needs to do more than provide attraction. It must fit the mounting space, deliver the required magnetic force, and work with the surrounding components. When standard sizes or mounting options do not meet these requirements, custom large cylindrical magnets offer a more suitable option.

Jinconn supplies custom NdFeB magnets for equipment manufacturers and industrial applications. Buyers can specify the magnet dimensions, grade, surface finish, and other technical requirements according to their product designs. For projects involving mechanical fixtures, removable panels, or custom mounting components, these details help determine whether a magnet will work as intended.

Rather than selecting a magnet based on size alone, it is worth considering the installation method, working conditions, and required holding force before confirming the design.

Design Requirements for Custom Large Cylindrical Magnets

Magnetic Grade and Holding Force

Magnet grade is an important part of product selection, but it does not determine holding force on its own. The contact surface, air gap, steel component geometry, and direction of the applied load can all affect the result.

Jinconn's reference product uses N35 NdFeB material, with a remanence of at least 11.8 kGs and intrinsic coercivity of at least 12 kOe. This grade may suit a range of general industrial applications, depending on the design.

For a custom project, buyers should provide the expected load, mounting arrangement, and operating conditions. These details help the engineering team assess the required magnetic properties instead of recommending a grade based on nominal strength alone.

Dimensional Tolerance and Mounting Fit

A magnet that does not fit its housing can create assembly problems, even when its magnetic performance meets the specification. This is particularly relevant when cylindrical magnets must fit machined holes or align with other precision components.

The reference N35 cylindrical magnet has dimensions of D10 × D4 × 20 mm and a stated dimensional tolerance of ±0.05 mm. Buyers should confirm the dimension notation and the function of each feature on the product drawing before placing an order.

For custom large cylindrical magnets, Jinconn can review drawings, samples, and dimensional requirements to establish the appropriate configuration. Clear specifications at the quotation stage also help reduce changes during sampling and production.

Silver-Coated Surface Finish

The surface finish affects both the appearance and the suitability of a magnet for its working environment. A silver-colored coating may be specified when the finished component requires a particular appearance or surface treatment.

However, the coating should match the actual application. If the magnet will be exposed to humidity, cleaning agents, or corrosive conditions, buyers should confirm the coating material and required corrosion-resistance performance with the supplier.

For this reason, it is useful to define the coating requirement alongside the magnet grade and dimensions rather than treating it as a finishing detail at the end of the project.

Mounting Solutions for Mechanical Assemblies

Mounting is another important consideration when selecting a cylindrical magnet. In some assemblies, adhesive bonding may not be appropriate, while a mechanical fixing method may be better suited to the product structure.

Custom cylindrical magnets with mounting holes can be considered for equipment fixtures, removable covers, magnetic holders, and other applications that require a defined installation position. The hole dimensions and surrounding structure must be designed to suit the intended fixing method.

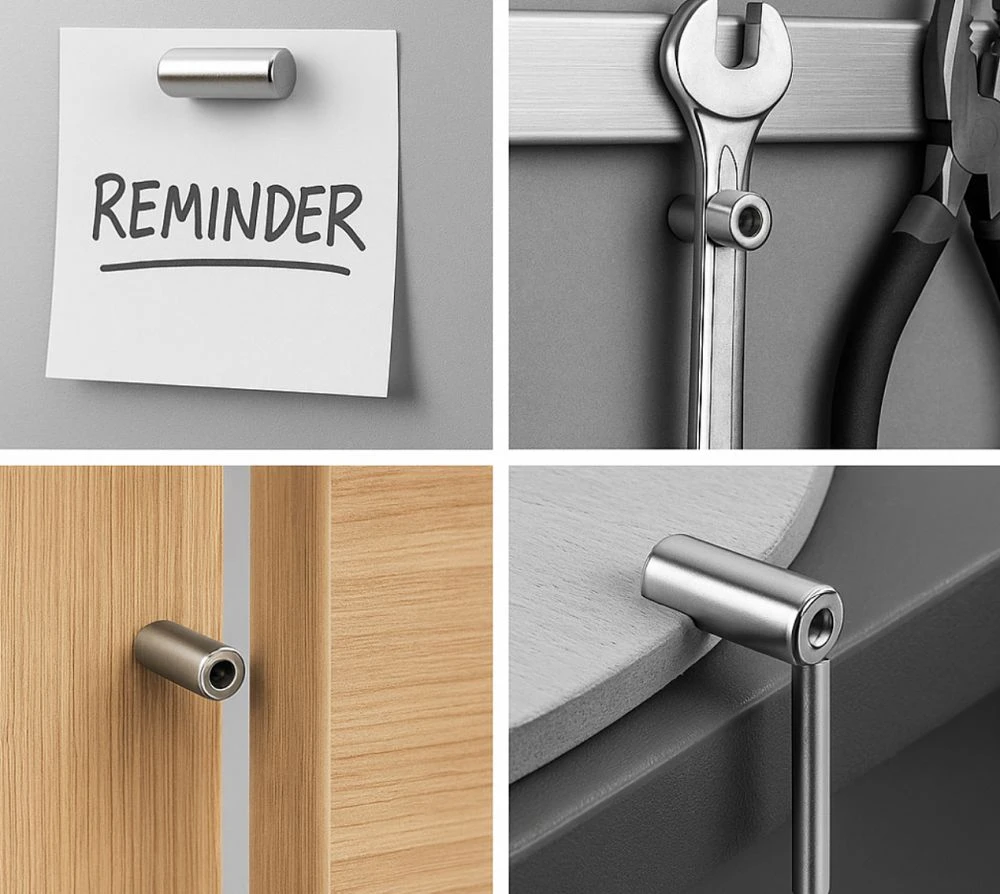

Typical applications include:

•Industrial equipment: Magnetic retention for selected covers, guards, and fixtures.

•Mechanical assemblies: Custom magnetic components fitted into housings or mounting structures.

•Scientific equipment: Magnetic holders and positioning fixtures designed for specific setups.

•Storage and display systems: Magnetic mounting components for workshop organization and product displays.

•Automation equipment: Magnetic retention or positioning components integrated into custom machinery.

Neodymium magnets are relatively brittle, so mechanical installation requires care. Screw pressure, impact, and uneven contact can cause chipping or cracking. Engineers should therefore consider the mounting structure, screw clearance, and load direction during design.

If your project requires a specific hole arrangement, provide a drawing showing the dimensions and fixing method. This allows the supplier to review the design before confirming production details.

Technical Specifications of Jinconn's Reference Magnet

The following specifications describe the reference product and can help buyers prepare their initial requirements.

These values apply to the reference configuration, not every custom design. The final specification should be confirmed against the approved drawing and technical requirements.

For example, a project that requires a different diameter, overall length, magnetic grade, or operating temperature may need a different configuration. Buyers should also confirm whether the listed D4 dimension refers to an inner hole, as well as the intended mounting arrangement.

Inspection Standards for Magnetic Components

Dimensional accuracy is only one part of magnet quality. Buyers also need to know whether the supplied magnets meet the agreed magnetic and surface requirements.

Depending on the project, Jinconn's inspection arrangements can include raw-material checks, in-process monitoring, and pre-shipment testing. Relevant checks may cover:

•Magnetic properties and magnetic flux

•Dimensions and visual appearance

•Coating adhesion

•Salt spray testing when specified

Test reports can be discussed during order confirmation, allowing both parties to agree on the inspection items and acceptance criteria before production.

For projects with strict assembly tolerances or defined environmental requirements, it is helpful to specify these criteria in the technical documentation. This gives the supplier a clear reference for production and final inspection.

Customization, Sampling, and Production

A standard magnet specification may be sufficient for a straightforward application. However, equipment manufacturers often need different dimensions, surface finishes, or mounting arrangements to suit their product designs.

Jinconn supports custom magnet projects from requirement review through sample validation and production planning. Buyers can submit drawings, physical samples, or a list of technical requirements for evaluation.

The reference lead times are 7–15 days for sampling and 20–30 days for mass production. Actual schedules depend on the design, material availability, order quantity, and sample approval process. Minimum order quantities can also be discussed according to the project stage.

To help prepare an accurate quotation, include the following information in your inquiry:

•Required diameter, length, and hole dimensions

•Magnet grade and magnetic performance requirements

•Surface coating and operating temperature

•Application details and mounting method

•Estimated order quantity and delivery schedule

Providing these details at the beginning makes it easier to assess the design and identify any technical questions before sampling starts.
