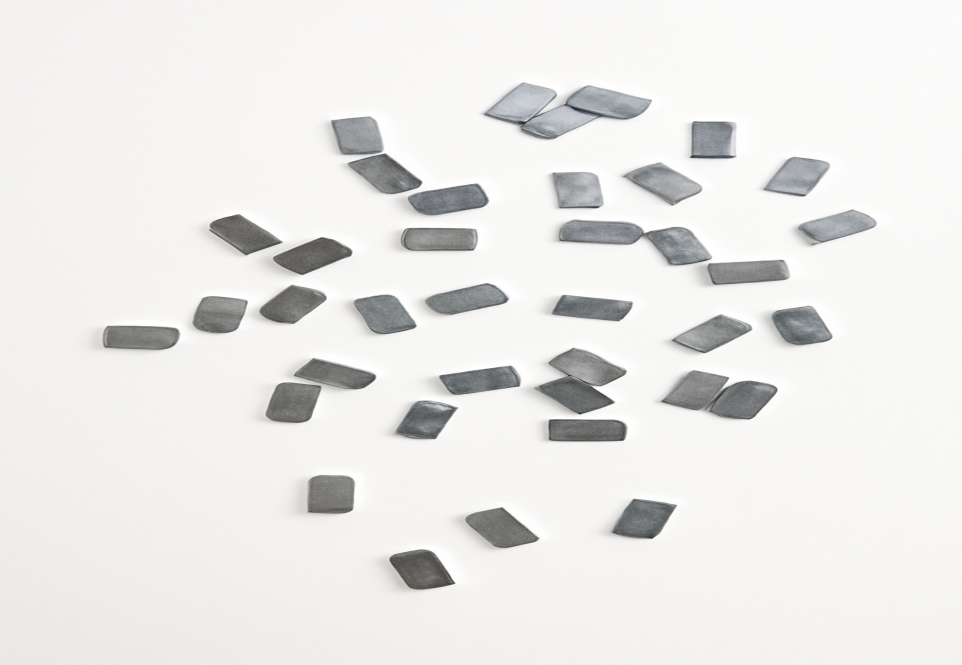

Industrial grade affordable high strength strong magnetic force small square NdFeB Magnets
1. Product Overview
The customized industrial grade affordable high strength high remanence strong magnetic force compact square NdFeB Magnets are high-performance permanent magnets featuring a design for secure mechanical fastening. It is manufactured using high-grade NdFeB material (e.g., N35–N52) and coated with triple-layer nickel plating (Ni-Cu-Ni), significantly improving corrosion resistance and surface durability. It is ideal for applications requiring both strong magnetic performance and robust mechanical mounting.
2. Technical Parameters
- Product Name: Industrial grade affordable high strength strong magnetic force small square NdFeB Magnets
- Magnet Grade: N38 (Br ≥ 13.2 KGs, Hcj ≥ 10.8 KOe)
- Dimensions: L6x2x0.5
- Dimensional Tolerances: Length ±0.05mm, Width ±0.05mm, Thickness ±0.05mm
- Working Temperature: ≤ 80°C (custom high-temperature versions available)
- Density: ≥ 7.5 g/cm³
- Surface Magnetic Field: 1500 Gauss (measured with TM-801 Gauss meter, Japan)
- Magnetic Flux: 1.7 mWb (measured with fluxmeter)

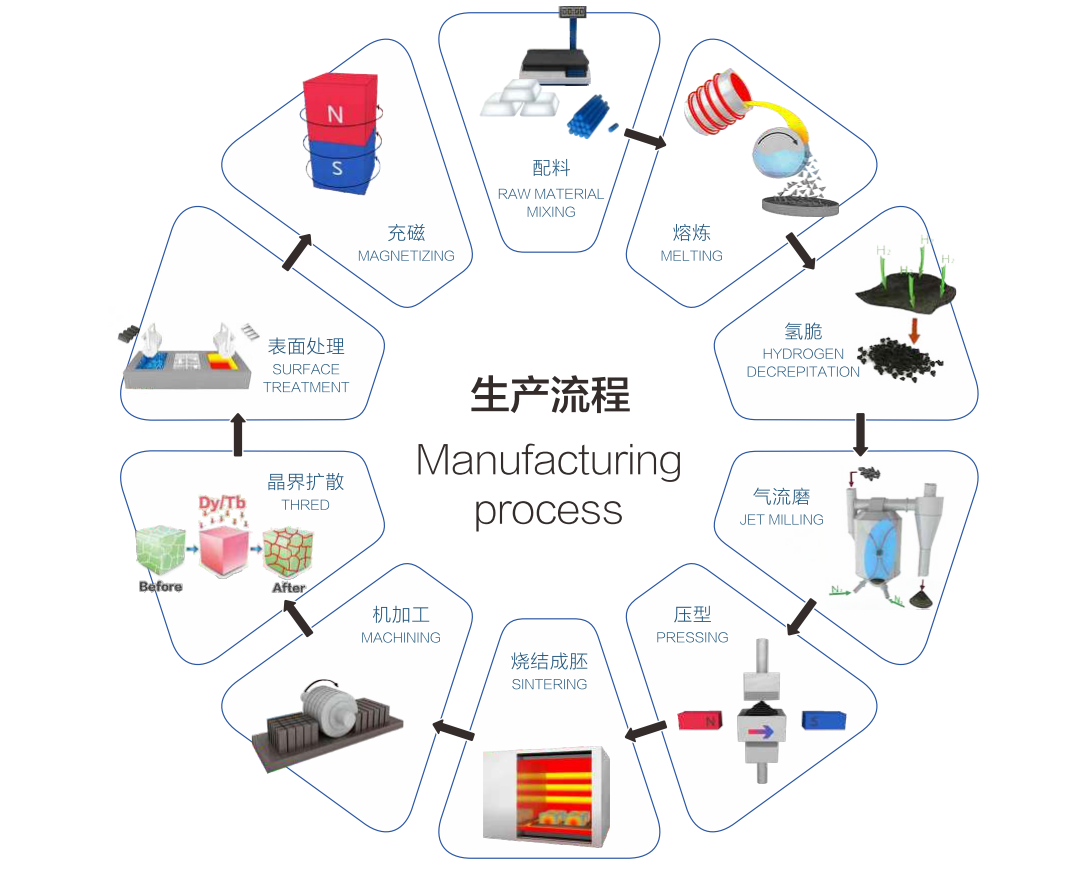

3. Manufacturing Process
Magnetization Process:
Professional pulse magnetization equipment is used to inject strong and stable magnetic fields, ensuring the magnet meets design specifications and performs reliably under high load or high-frequency operation.
Grinding & Fine Finishing:
Advanced precision equipment grinds the magnet surface to ensure smoothness and tight dimensional tolerances, supporting high-precision industrial applications.
4. Surface Treatment & Plating Technologies
Ni Coating:
Offers enhanced chemical resistance and waterproofing, especially suitable for humid environments.
Triple Nickel Plating:
Ni-Cu-Ni electroplating dramatically enhances corrosion resistance and mechanical durability.
5. Appearance & Dimensional Inspection Standards
Manual Inspection with Micrometer/Caliper:
Ensures dimensional accuracy per design specification.
Visual Inspection:
Performed under standard lighting to detect cracks, surface defects, or imperfections.
2D Optical Measurement System:
Used for irregular or complex-shaped parts to verify geometric and dimensional accuracy
Magnetic Flux Testing:
Ensures consistent magnetic strength across each production batch.
6. Application Fields
Industrial Automation:
Fixtures, jigs, robotic arms — Square-sunk holes allow secure screw mounting for accurate positioning.
Tools & Equipment:
Positioning of electric tool components; removable magnetic covers for instruments.
Sensors & Detection Devices:
Magnetic sensors, reed switches, and position detectors.
Medical & Electronic Devices:
Mounting of portable medical devices and electronic modules — strong, stable force without interfering with sensitive electronics.
7. Usage Precautions
Handling:
NdFeB magnets are hard yet brittle—avoid dropping, collision, or edge impact.
Safe Operation:
Strong magnetic force may cause pinching—slide magnets apart instead of forcing them.
Proper Installation:
Identify and align polarities correctly to ensure stable operation.
Storage Conditions:
Avoid high temperatures, humidity, and corrosive (acid/alkali) environments.
Magnetic Interference:
Keep magnets away from sensitive equipment like hard drives, IC cards, and pacemakers.
8. Customization & Services
Customized dimensions, shapes, coating layers/thickness/color
Magnetic polarity and force specification
Laser engraving for logos or serial numbers
Encapsulation solutions and pull-force testing for specialized applications
If you require samples, technical datasheets, or certifications such as MSDS, RoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, or ISO 27001, our sales engineers are ready to assist you.
