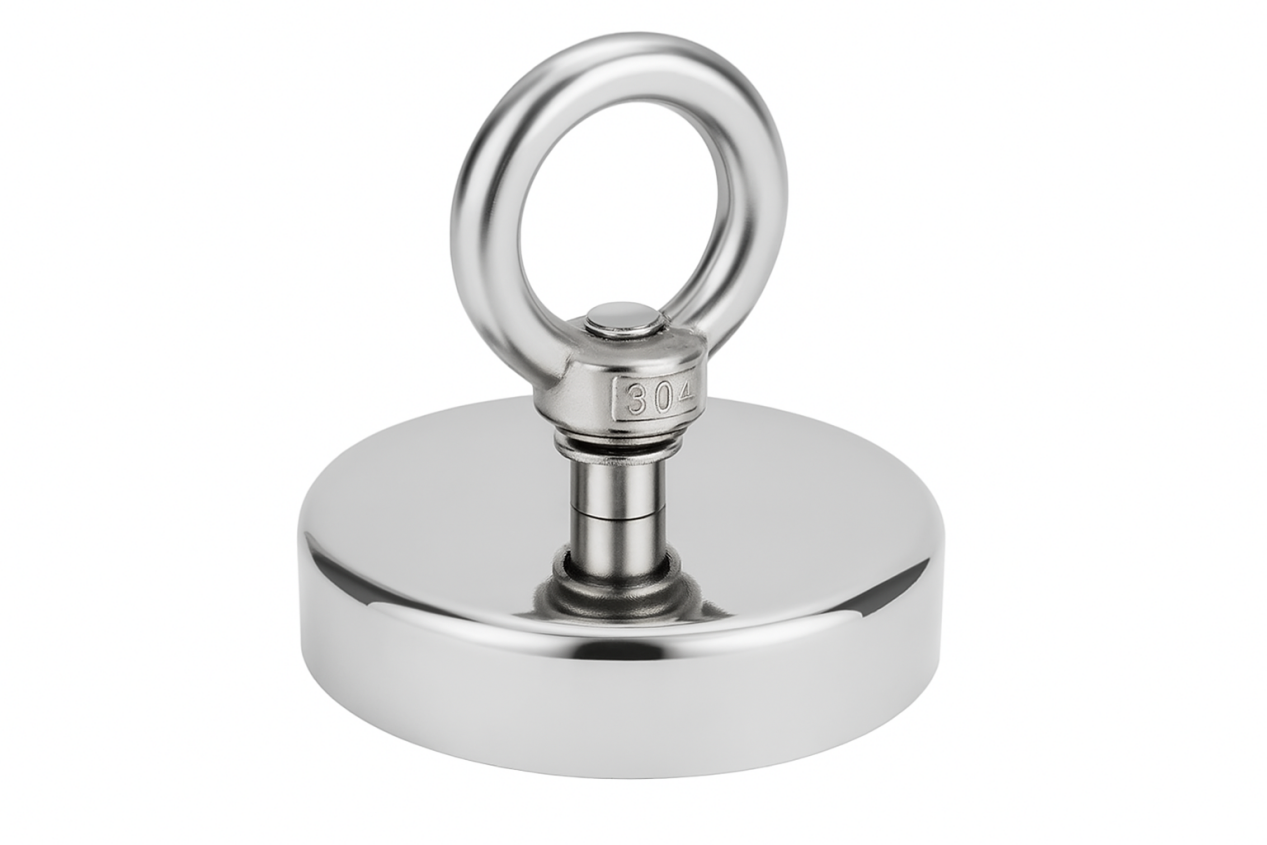

Powerful pull capacity NdFeB Eyebolt-shaped Magnets

2025-7-17

1.Product Overview

Precision customized heat resistant powerful pull capacity NdFeB Eyebolt-shaped Magnets are annular permanent. They are widely used in applications requiring uniform magnetic fields or axial/radial magnetism. With excellent magnetic properties, structural stability, and machining adaptability, tailor-made high coercivity corrosion resistant powerful pull capacity NdFeB Eyebolt-shaped Magnets are key components in high-precision elector mechanical systems, inductive devices, and electronic assemblies. Compared to other magnet shapes, the magnetic ring offers better integration and concentrated magnetic flux, improving system efficiency.

2. Technical Parameters

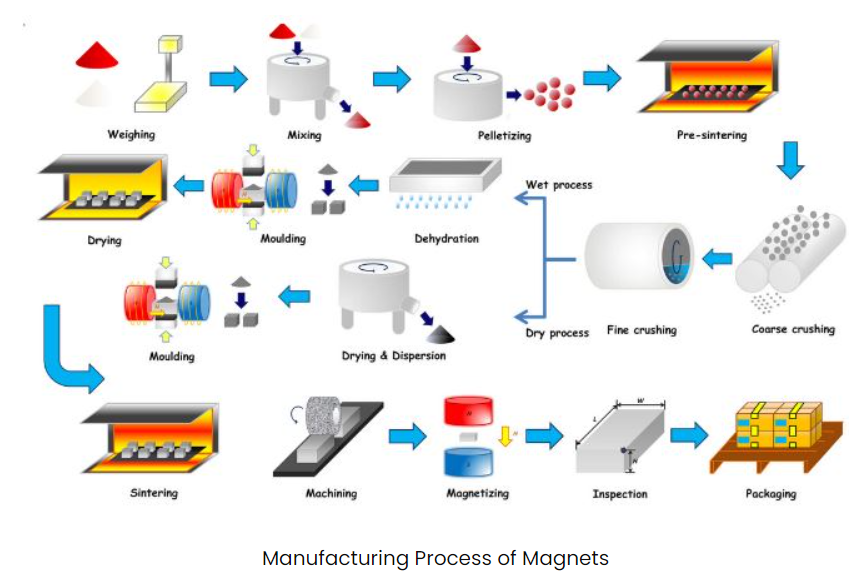

3. Manufacturing Process

The manufacturing process of this strong magnetic force high stability powerful pull capacity NdFeB Eyebolt-shaped Magnet are as following:

- Pulse Plating: Uses pulsed current control to create denser and more uniform metallic crystal structures. Compared to traditional plating, this significantly improves coating adhesion and corrosion resistance.

- Laser Sealing: High-precision laser scanning seals micro-cracks and pores on the coating surface, improving resistance to moisture, salt spray, and harsh environments. Corrosion resistance can exceed 1000 hours.

- Parylene Vacuum Coating: A conformal polymer layer applied by vapor deposition (CVD). It is pinhole-free, highly insulating, biocompatible, and chemically resistant. Widely used in medical and clean environments.

4. Surface Treatment & Coating Technology

- Copper Undercoating: Enhances adhesion and fills micro-porosity.

- Ni-Cu-Ni Coating: A three-layer plating that improves rust, corrosion, and abrasion resistance.

- Epoxy Coating: Black or gray finish; enhances thermal resistance and is suitable for humid or chemical environments.

5. Appearance & Dimensional Inspection Standards

- Manual measurement using micrometer/caliper

- Visual inspection under 800–1200 lumens

- 2D optical inspection for non-standard shapes


- CCD auto-sorting and full appearance/dimensional check

- Magnetic flux testing to ensure magnetic consistency

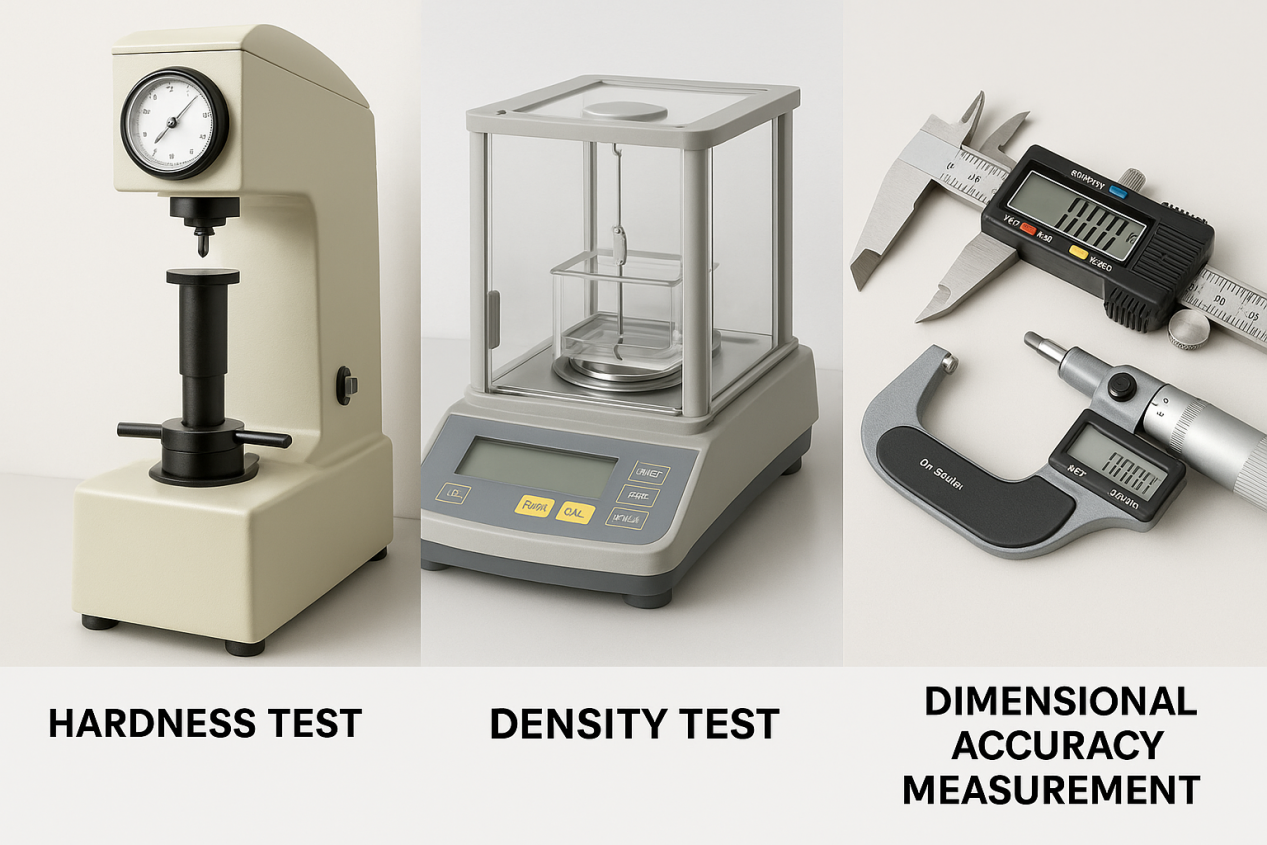

6. Reliability Testing

-Thermal Shock Cycling Test:

Evaluates the structural integrity and coating adhesion of magnets under extreme temperature fluctuations.

- Magnetic Performance Consistency Test:

Uses a Gaussmeter to verify the uniformity of surface magnetic field, remanence, and magnetic flux across different production batches, ensuring minimal performance deviation that could affect final assembly or operational stability.

-Tensile/Adhesive Strength Test:

Applicable to applications involving adhesive bonding or magnet assemblies. A tensile testing machine measures the maximum force required to peel the magnet off its bonded substrate, ensuring reliable adhesion against vibration or aging effects.

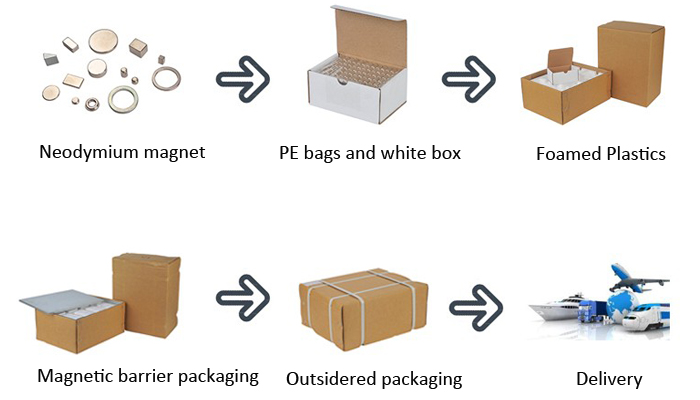

7. Packaging Process

Items with cosmetic or dimensional defects are eliminated through strict inspection

Qualified units are magnetized in batches and arranged in order

Packed per client specifications with customized labeling

Each unit is vacuum-packed with magnetic shielding and shockproof padding for enhanced protection

Shipping:
Ground/Express Courier (DHL, UPS, FedEx)

Good for small and medium volumes.
Couriers may require magnetic declaration and limited field strength—shielding still needed for high-grade magnets

8. Application Fields

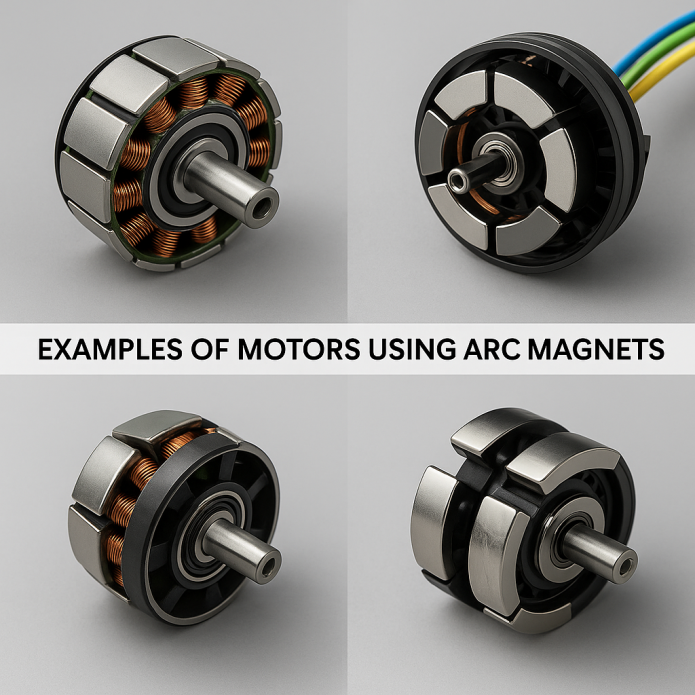

- Motor Systems: Brushless, stepper, and servo motors, Bluetooth earphone, headphone

- Sensor Components: Hall sensors, encoders, displacement detectors

-Medical Devices: MRI systems, electromagnetic clamps

- Consumer Electronics: Magnetic connectors, wireless charging rings

- Industrial Automation: Magnetic coupling systems, transmission parts

- New Energy: EV drives, wind power generators, sensor motor magnet

 9.Usage Precautions

- Avoid impact or dropping; NdFeB is brittle

- Use sliding motion to separate to avoid pinching

- Install with correct polarity to ensure device stability

- Store away from heat, humidity, and corrosive environments

- Keep away from sensitive electronics (pacemakers, hard drives, IC cards)

10. Customization & Services

- Customizable parameters: dimensions, shape, magnetization direction, coating thickness

- Optional laser marking for logos or serial numbers

- Support for sample testing, pull-force testing, and packaging solutions, industrial motor magnet.

We are delighted to provide complimentary customized magnet solutions designed to meet your unique requirements.
