1. Product Overview & Application Scenarios

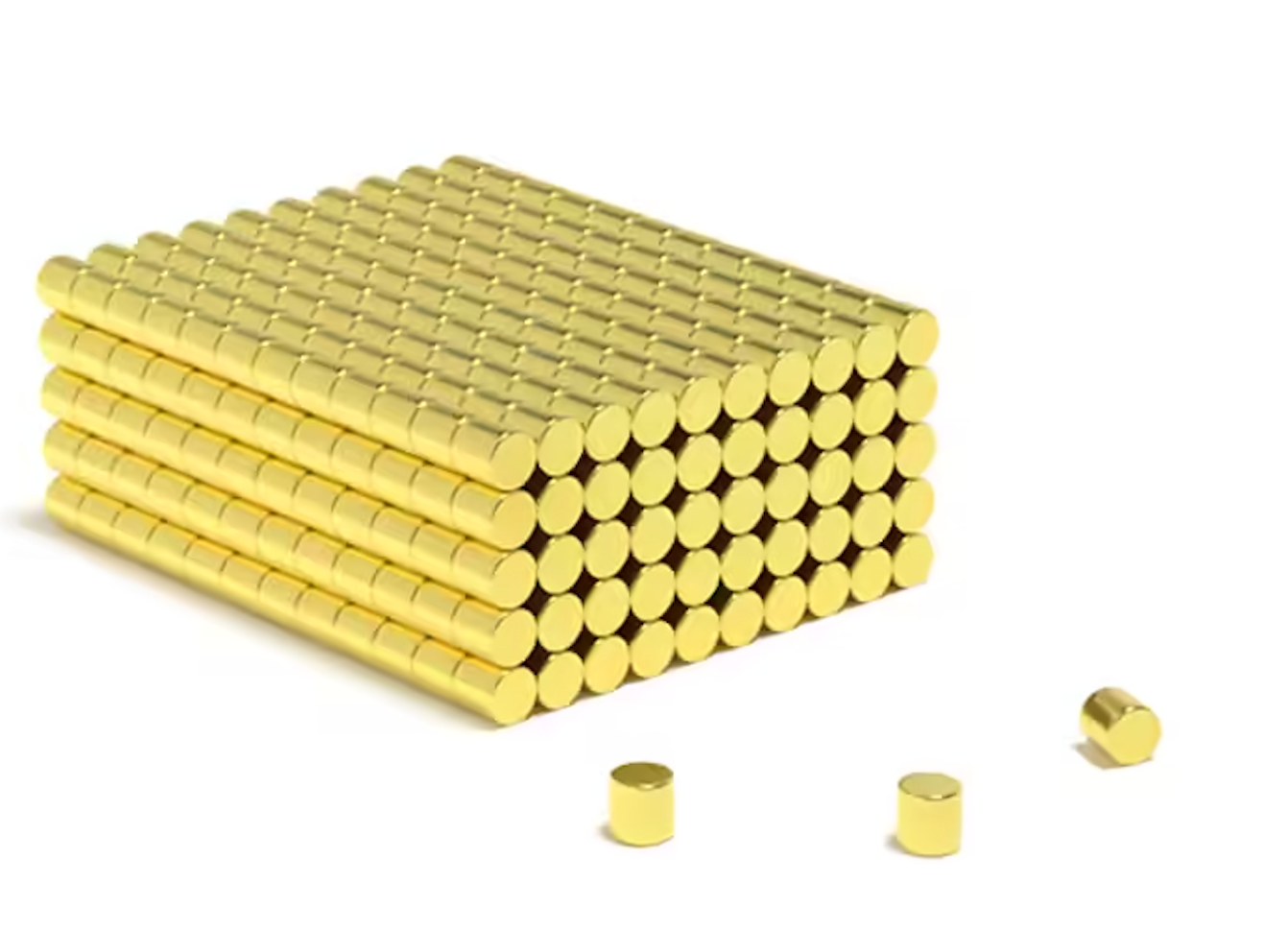

Unlock the exceptional potential of these 2mm x 2mm gold-plated neodymium disc magnets—ideal for a vast array of applications. Combining powerful magnetic force with a sleek gold finish, these customized heat resistance high pull force stable super strong Neodymium Gold Plated therapy compact cylinder shaped magnets are perfect for:
Luxury crafts & jewelry making – Add a touch of elegance with durable, high-performance magnets.
Decorative woodworking & bespoke furniture – Seamlessly integrate discreet yet strong magnetic closures.
High-end manufacturing – Reliable precision for demanding industrial and design applications.
Science experiments & engineering projects – Leverage top-tier magnetic strength for research and prototyping.
Rated at N54 grade, these neodymium magnets deliver unmatched strength and durability in a miniature form. Elevate your projects with premium gold-plated magnets that blend performance, aesthetics, and reliability effortlessly.

2. Technical Specifications

- Product Name: customized high pull force super strong Neodymium Gold Plated therapy compact cylinder shaped magnets

- Magnet Grade: N54 (Br ≥14.5 kGs, Hcj ≥12 kOe)

- Dimension: D2*2mm

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 1,200 Gs

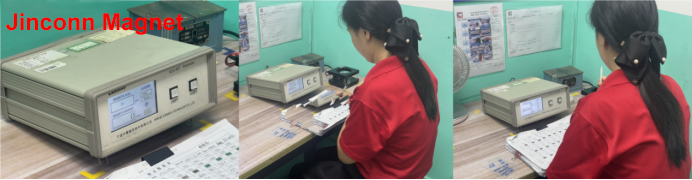

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance  this customized professional grae high torque high pull force super strong Neodymium Gold Plated therapy compact cylinder shaped magnet’s corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

Coating Benefits:

Salt spray resistance and improved oxidation durability

Higher surface hardness and scratch resistance

Enhanced gloss, suitable for exposed parts

4. Appearance & Dimensional Inspection

The ways of inspecting this precision customized high coercive high pull force super strong Neodymium Gold Plated therapy compact cylinder shaped magnet’s apperance are as following:

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.

Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

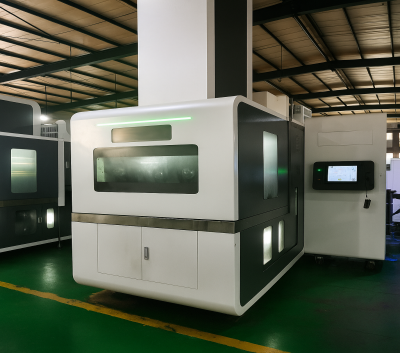

Automated Intelligent Inspection: High-speed cameras with AI algorithms detect and reject defects (e.g., cracks, scratches, discoloration) and dimensional anomalies, improving yield and reducing human error.

5. Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing

Damp Heat Test: Evaluates resistance to high humidity and corrosion.

6. Packaging & Transportation

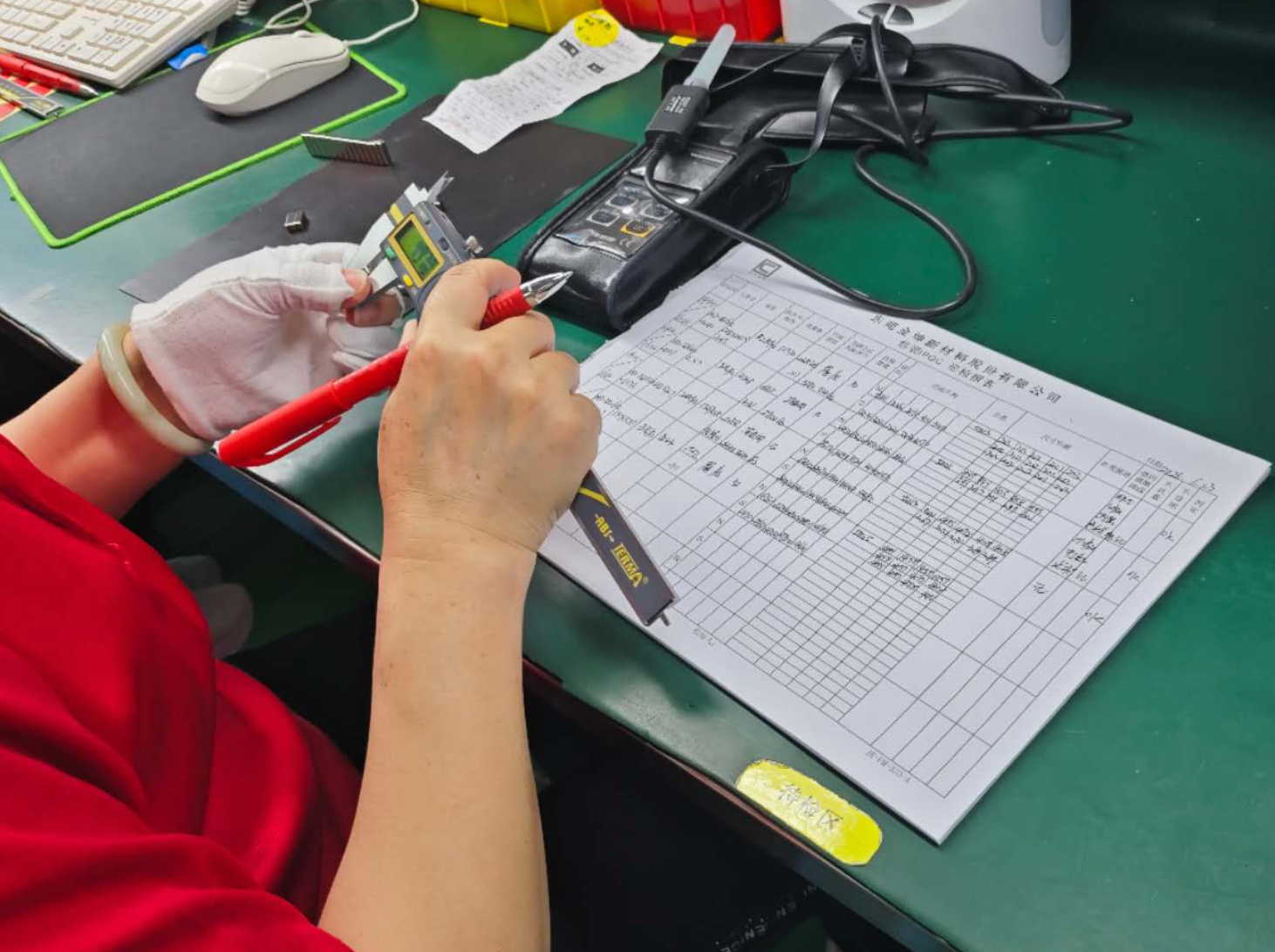

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

We understand logistics is more than just transport — it's about your commitment and customer satisfaction. Our solutions offer:

Global logistics support

End-to-end visual tracking

Multiple layers of transport safety

One-on-one customer service for tailored shipping plans

With our reliable land, sea, and air logistics network, we empower your business to go further and soar higher.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

7.  Usage Precautions？

Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.

Polarity check: Install correctly to avoid malfunctions.

Avoid moisture/acids: Store in dry, mild environments.

Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

8. Customization & Services

Custom magnet size, shape, and coating (layers, thickness, color)

Tailored magnetization direction and field strength

Laser engraving service for logos or serial numbers

Packaging and suction force testing for special applications
