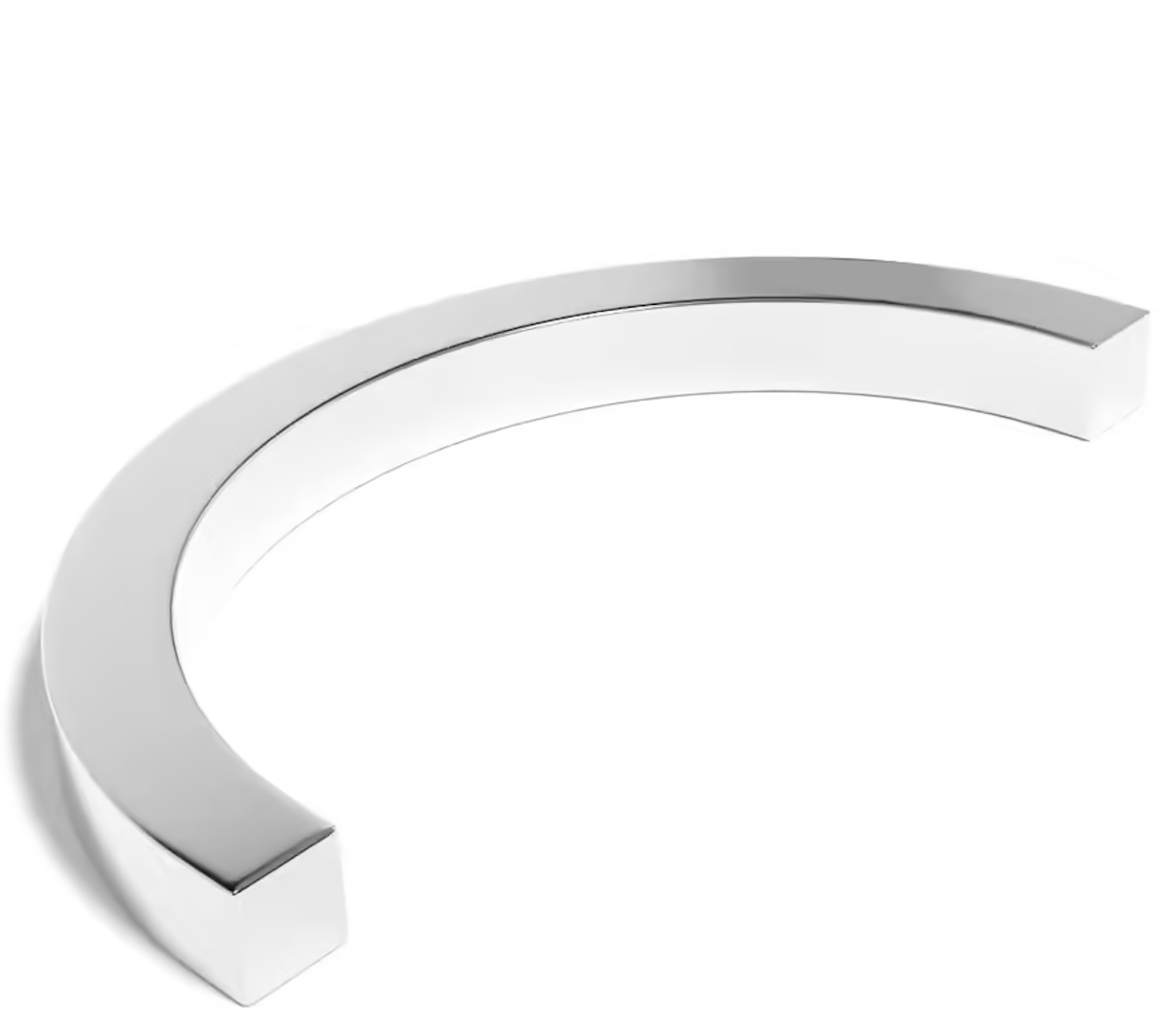

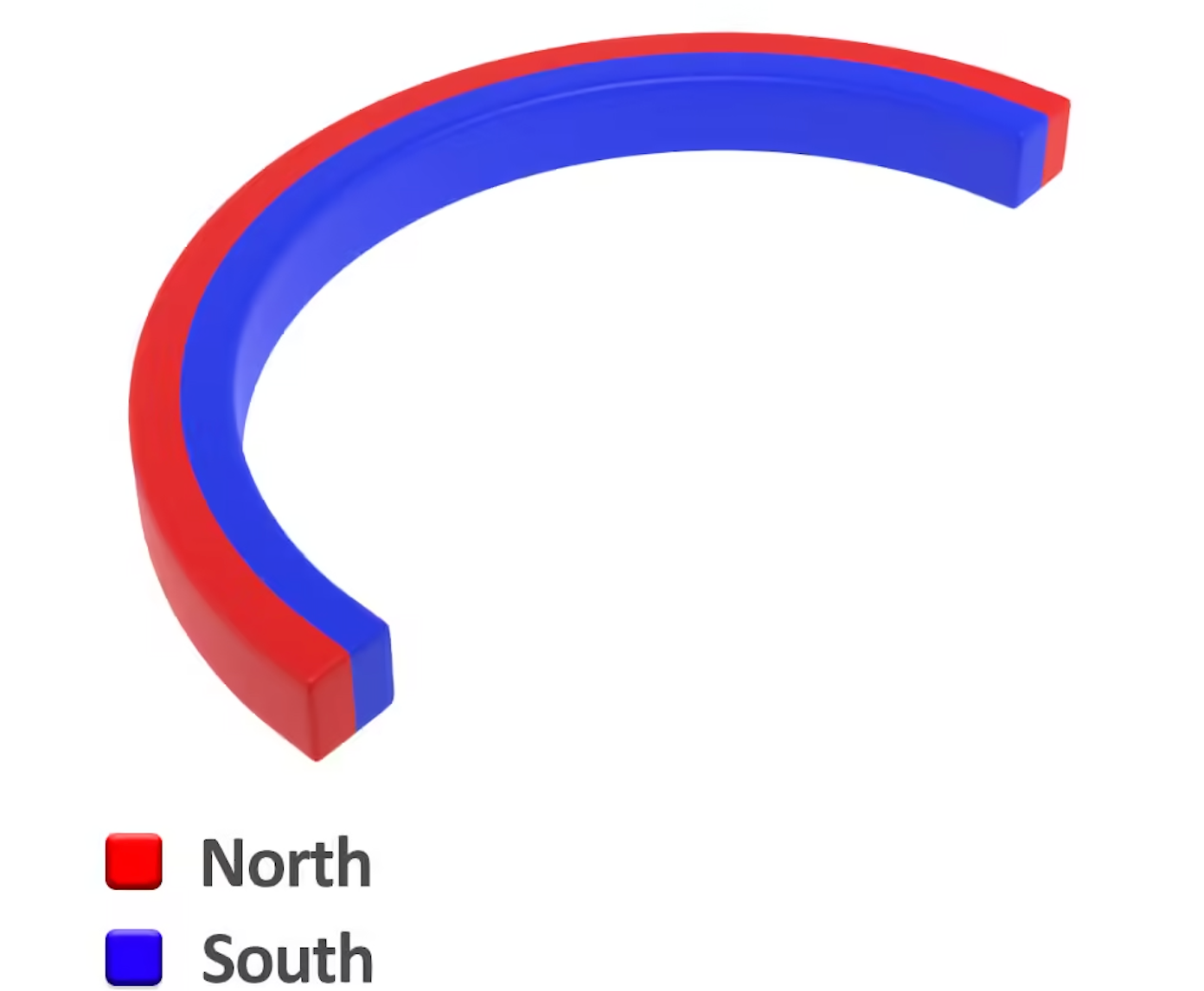

Corrosion resistant bright nickel N52 – OR North neodymium arc segment magnet

2025-7-12

1. Product Overview & Application Scenarios

Ideal for advanced industrial applications, these stong magnetic force corrosion resistant stable bright nickel N52 – OR North neodymium arc segment magnets are engineered to provide exceptional magnetic performance in devices like electric motors and generators. Their curved design enables smooth integration into motor assemblies, optimizing the magnetic field for peak energy transfer and torque generation. Widely utilized in the automotive and aerospace sectors, these professional grade high stability fast response mighty corrosion resistant bright nickel N52 – OR North neodymium arc segment magnets play a vital role in high-efficiency propulsion systems and energy-saving machinery. With their durable build and strong magnetic characteristics, they are indispensable in industries requiring high precision and reliability.

2. Technical Specifications

- Product Name: corrosion resistant bright nickel N52 – OR North neodymium arc segment magnet

- Magnet Grade: N52 (Br ≥14.6 kGs, Hcj ≥12 kOe)

- Dimension: OR68.5mm x IR56.5mm x T12mm

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 3,500 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance these industrial use heat resistant high remanence  bright nickel N52 – OR North neodymium arc segment magnets’corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

Coating Benefits:

Salt spray resistance and improved oxidation durability

Higher surface hardness and scratch resistance

Enhanced gloss, suitable for exposed parts

4. Appearance & Dimensional Inspection

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.

Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

5. Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

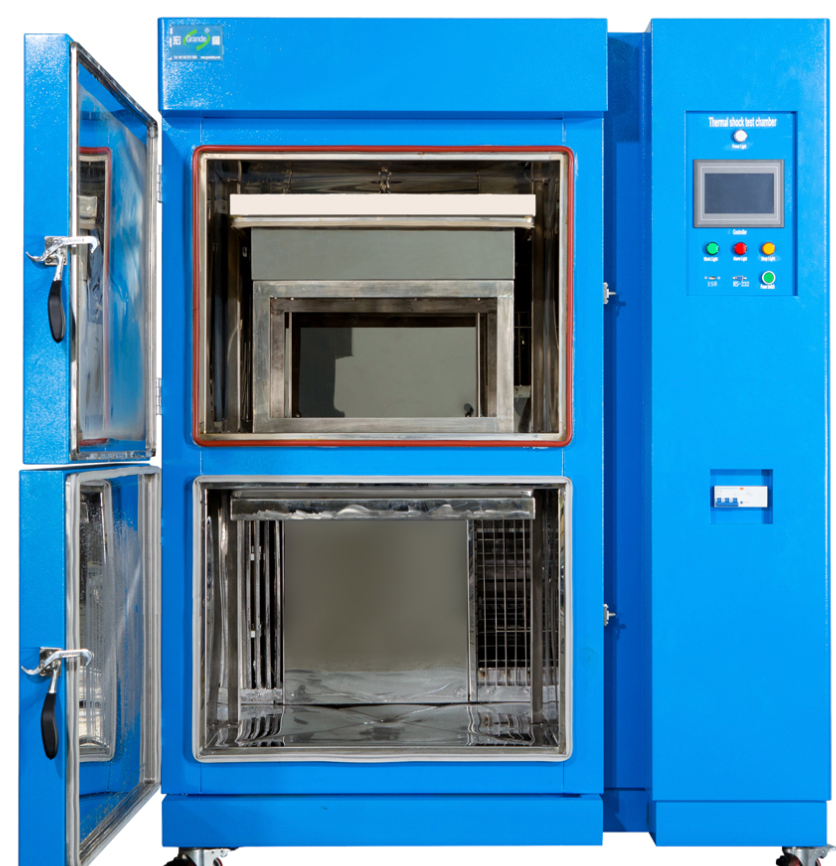

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

6. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

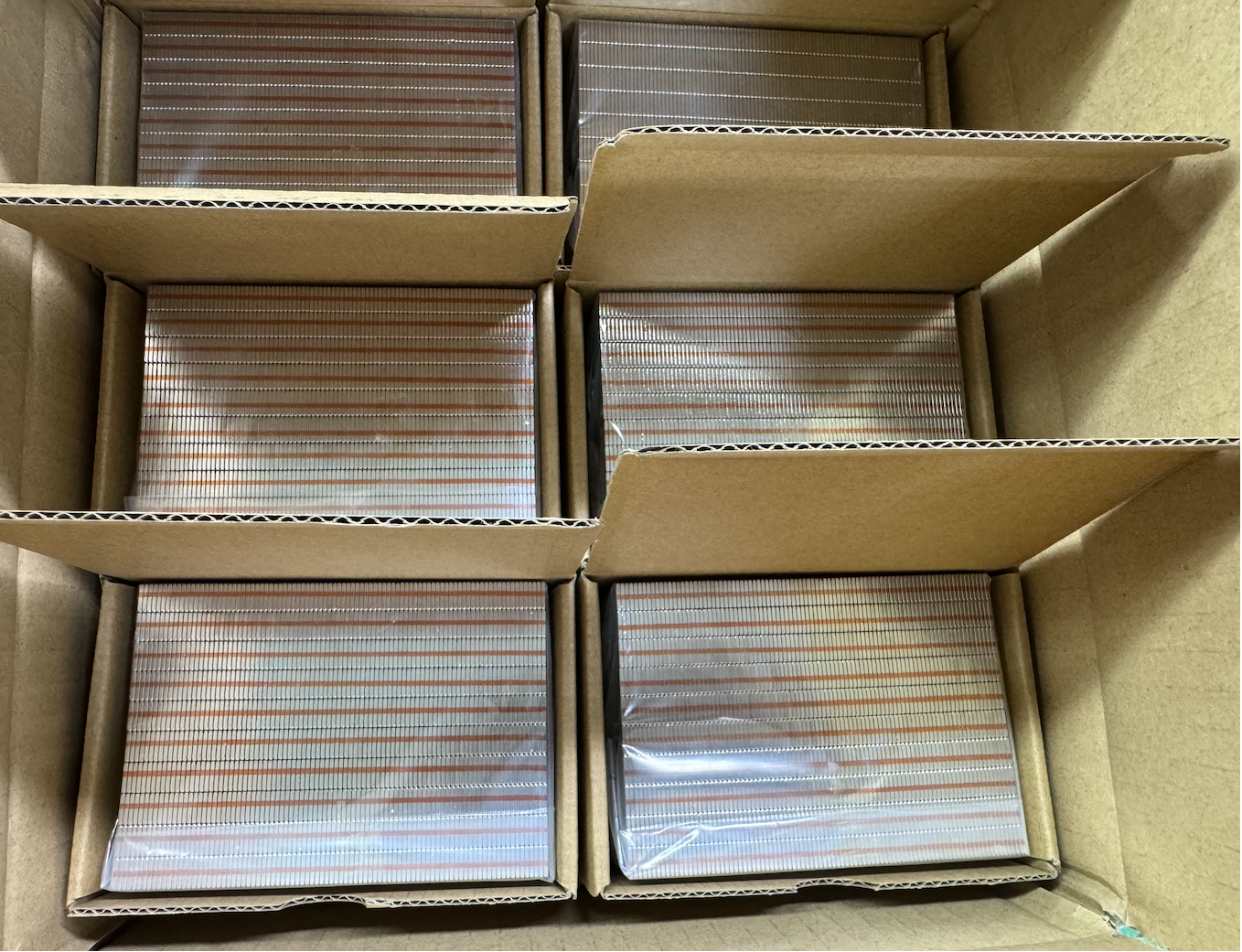

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

7.  Usage Precautions？

Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.

Polarity check: Install correctly to avoid malfunctions.

Avoid moisture/acids: Store in dry, mild environments.

Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

8. Customization & Services

Custom magnet size, shape, and coating (layers, thickness, color)

Tailored magnetization direction and field strength

Laser engraving service for logos or serial numbers

Packaging and suction force testing for special applications

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!
