Customized powerful high working temperature High remanence Wedge-shaped permanent NdFeB magnet
2025-7-10
1. Product Overview:
The tailor-made automative-grade powerful high working temperature High remanence Wedge-shaped permanent NdFeB magnet is a specialized ceramic-based magnetic component known for its high electrical resistivity, exceptional temperature stability, and robust corrosion resistance. Its wedge geometry is optimized for integration into circular magnetic assemblies or rotor systems where space-saving layout and consistent field distribution are essential. These customized powerful high working temperature High remanence Wedge-shaped permanent NdFeB magnet offer stable performance without surface plating and are ideal for applications requiring long-term operation in harsh or high-temperature environments.
2.Technical Parameters:
Product Name | customized powerful high working temperature High remanence Wedge-shaped permanent NdFeB magent
|
Magnet Grade | N42 (Br ≥ 14.8 KGs, Hcj ≥ 10.5 KOe) |
Dimensions | D10-D5*1.5 (R2) |
Tolerance | L±0.05mm W±0.05mm T±0.05mm |
Working Temperature | ≤ 80°C (custom high-temperature versions available) |
Density | ≥ 7.5 g/cm³ |
Surface Magnetic Field | 1900 Gauss (measured with TM-801 Gauss meter, Japan) |
Magnetic Flux | 1.10 mWb (measured with fluxmeter) |
3. Manufacturing Process:
- Powder Preparation: Raw ferrite materials are mixed, calcined, and milled to micron-level powders.
- Pressing & Molding: Isostatic or dry pressing using wedge-shaped molds for precise geometry.
- Sintering: High-temperature sintering at 1200–1300°C for densification and grain bonding.
- Grinding & Finishing: Machining for dimensional accuracy and smooth wedge mating surfaces.
4. Surface Treatment & Coating Technology:
Ferrite magnets are inherently resistant to corrosion and oxidation, thus typically do not require surface coatings. For added protection or marking, the following may apply:
- Epoxy Resin Coating (optional): Adds wear and environmental resistance.
- Laser Engraving: For polarity, orientation or batch coding.
- Anti-rust Oil Treatment: Light oil film for storage under high humidity.
5. Appearance & Dimensional Inspection Standards:
- Manual inspection with calipers and angle gauges
- Visual inspection under standard lighting (800–1200 lux)
- 2D imaging system for irregular geometry accuracy
- Magnetic field and polarity verification
- Custom fixture-based slot and wedge matching checks
6. Packaging Process & Instructions:
- Sorting and inspection before packaging
- Mated wedge pairs aligned and packed to preserve orientation
- Vacuum sealed or shrink-wrapped for moisture control
- Internal partitions or foam to prevent chipping
- Cartons labeled with grade, quantity, and orientation
7. Application Fields:

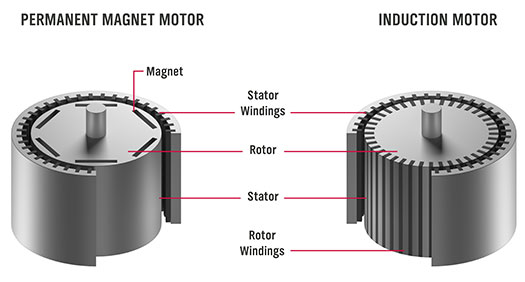

- Brushless DC Motors (BLDC): Segment rotor rings for consistent torque and magnetic balance
- Generator Rotors: Wedge layout for compact flux path control
- Magnetic Couplings: Torque transmission in chemical pumps
- Household Appliances: Motors in air conditioners, washing machines, etc.
- Automotive: Power steering, windshield motors, seat actuators
- Fan Blowers and HVAC Systems: Cost-effective and stable rotor design
8. Usage Precautions:
- Handle with care to avoid chipping; ferrite is brittle
- Avoid sudden temperature shocks post-sintering
- Store in dry environments away from alkaline substances
- Confirm proper polarity and wedge orientation before assembly
