10mm x 6mm 2.5mm Powerfull Custom Shaped Nickel Coated Neodymium Magnet

10mm x 6mm 2.5mm Powerfull Custom Shaped Nickel Coated Neodymium Magnet

2025-7-15

Understanding Neodymium Magnets

Neodymium (NdFeB) magnets are known for their exceptional magnetic strength, making them the strongest type of permanent magnet on the market. Their compact size allows them to deliver high magnetic force even in space-constrained applications. In construction, they help securely position metal components during assembly, while in the medical sector, they play a vital role in the consistent performance of imaging systems and sensitive equipment. From everyday home tasks to demanding industrial operations, these magnets ensure dependable, long-lasting functionality.

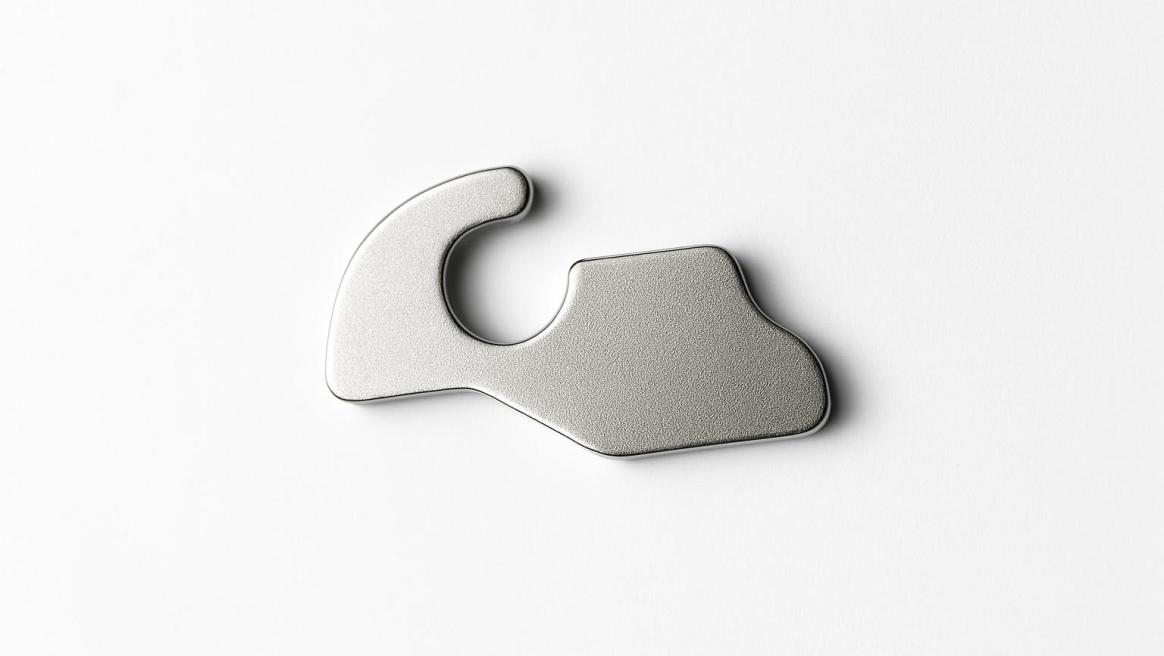

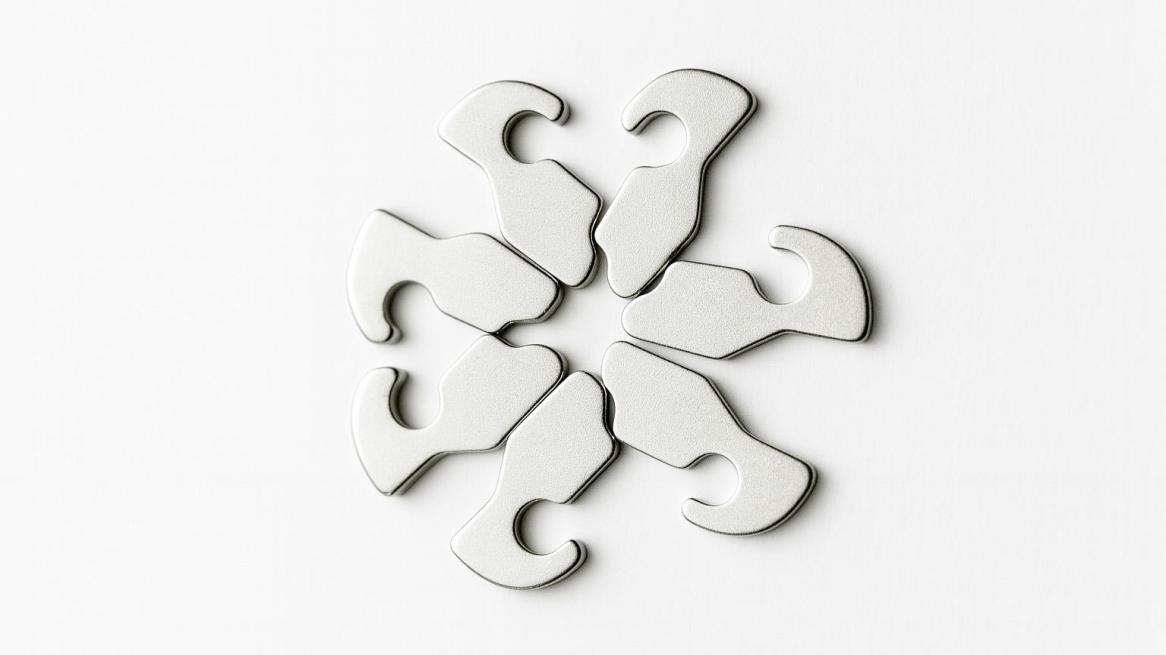

Custom Shaped Neodymium Magnet

Designed for high-performance applications, custom-shaped magnets play a vital role in modern motors and generators that demand precise magnetic positioning. Their unique form allows them to fit perfectly around components like rotors or stators, helping to maintain steady magnetic flow and support efficient energy conversion.

These magnets are widely used in electric vehicles, wind turbines, and automated industrial systems—where strong, reliable magnetic performance is key. Built to deliver both power and precision, they help improve overall system efficiency, making them a smart choice for industries focused on innovation, sustainability, and performance.

Magnet Grade: N42

N42 grade neodymium magnets offer a balanced combination of strength and versatility, with a maximum energy product of around 42 MGOe. Well-suited for various applications including motors, sensors, and precision assemblies, they deliver consistent magnetic performance. Their reliable field strength makes them a preferred choice for consumer electronics and technical equipment alike. Widely adopted across industries, N42 magnets are valued for their dependable and efficient performance.

Protective Coating: Ni-Cu-Ni

These Ni-Cu-Ni plated neodymium magnets feature a robust triple-layer coating that shields the neodymium core from moisture and oxygen, preventing corrosion over time. The polished, glossy finish adds aesthetic appeal while ensuring reliable performance in environments with mild moisture exposure. For harsher applications where greater durability is required, epoxy coatings may be more suitable for long-term protection.

Material Neodymium (NdFeB)

Product Name: Custom Shaped Neodymium Magnet
Magnetic Grade: N42 (Br ≥ 13.5 kGs, Hcj ≥ 12 kOe)
Thickness: L10mm x 6mm x 2.5mm
Dimensional Tolerance: Length ±0.05mm, Width ±0.05mm, Thickness ±0.05mm

Magnetisation Direction: Axially Magnetised
Operating Temperature: ≤80°C (high-temp version available)
Density: ≥7.5 g/cm³
Surface Magnetic Field: 3800 ±200 Gauss (measured with TM-801 Gauss meter)
Magnetic Flux: 2.3 mWb (measured with fluxmeter)

Manufacturing Process

The product is manufactured through the following key processes:

● A high-speed grinding wheel shapes the magnet's surfaces with tight dimensional tolerances.

● Coolant fluid is applied to control heat, reduce surface stress, and ensure a smooth finish.

● The result is a uniform, precisely dimensioned magnet with clean edges—ideal for high-performance applications.

This precision step is essential for ensuring that the final magnets meet strict quality standards for use in motors, sensors, electronics, and aerospace components

Surface Treatment & Plating

To enhance corrosion resistance and appearance:

Default Plating: Triple-layer Ni-Cu-Ni (customizable).

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm).

Optional Plating: Single-layer Zn (5μm) for cost-sensitive projects.

Features:

✔ Salt spray & oxidation resistance

✔ Increased surface hardness (scratch-resistant)

✔ Improved gloss (ideal for exposed components)

Appearance & Dimensional Inspection

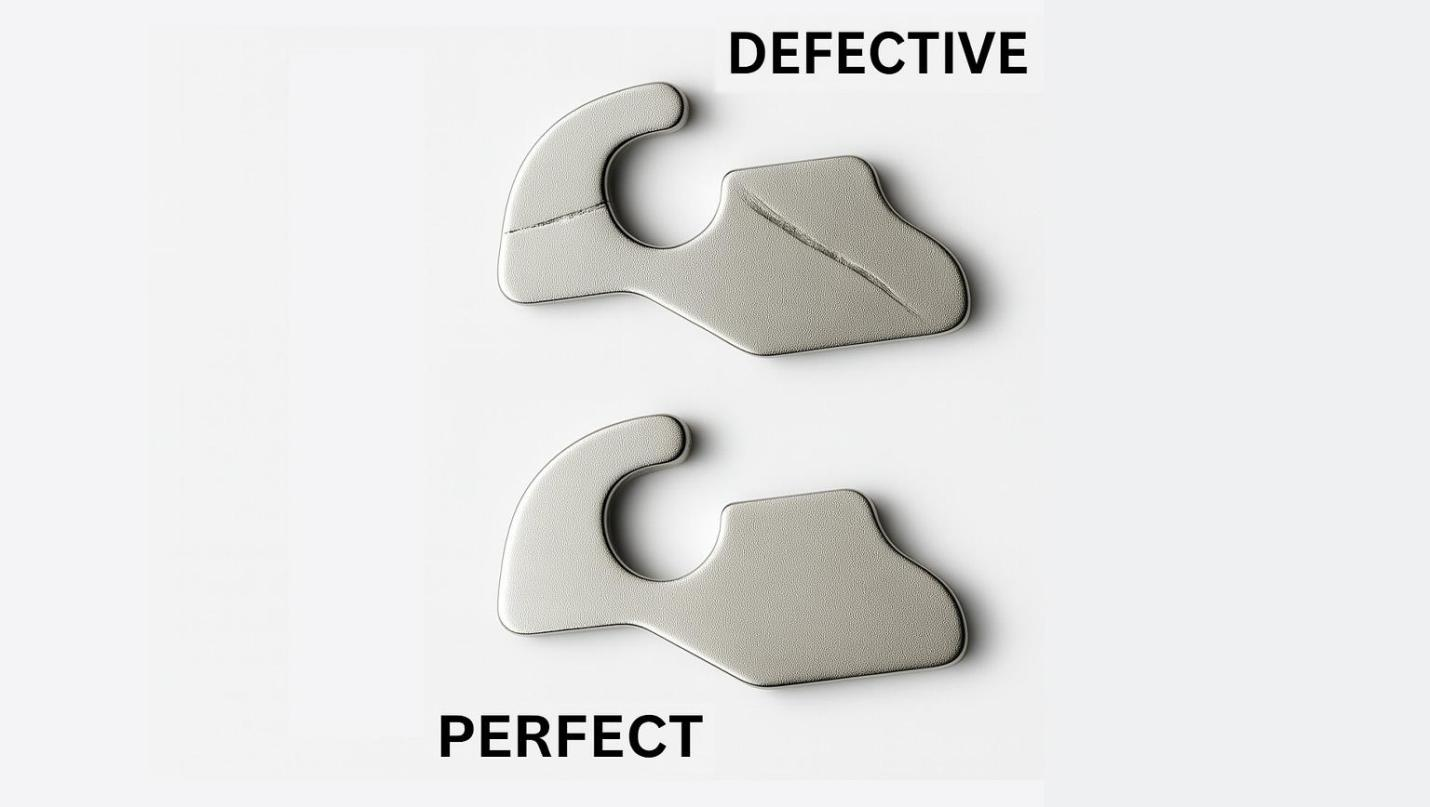

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation

Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

Applications

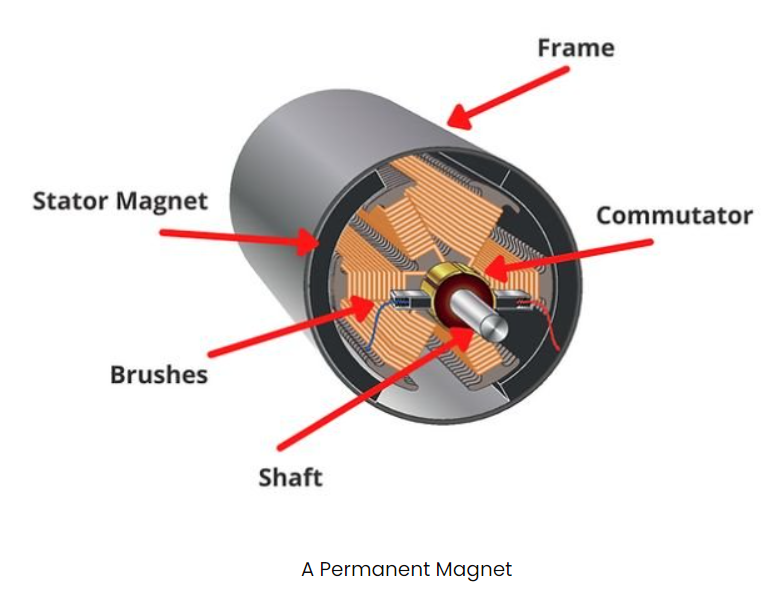

Electric Motors & Generators
Application: Precision-engineered magnets are employed in stators, rotors, and brushless DC motors to enhance magnetic flux density, efficiency, and torque performance.

Consumer Electronics
Application: High-performance neodymium magnets are integrated into speakers, haptic systems, vibration motors, and sensors, contributing to compact design and reliable functionality.

Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

Frequently Asked Questions:

Q: How to choose the correct magnetization direction?

Axial Magnetization: Magnetic lines flow through thickness — best for concentrated fields

Radial Magnetization: Magnetic lines radiate outward — for uniform field distribution

Multipole Magnetization: Multiple poles along circumference — for complex fields (e.g., motors, sensors)

Q: What is the maximum working temperature of a ring magnet?

Standard N-series: up to 80°C

High-temp grades (SH/UH/EH): up to 150°C–230°C

Dysprosium-enriched formulations can further enhance temperature resistance

Q: Does magnetism decay over time?

Under normal conditions (room temp, dry, no heavy vibration), NdFeB magnets exhibit excellent time stability (<5% loss over 10 years). However, factors like:

● Temperature overrun

● Strong external magnetic fields

● Surface corrosion

● Mechanical impact may affect performance.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

Usage Precautions？

● Handle gently: Avoid impacts/drops (brittle material).

● Prevent pinching: Slide magnets apart—do not pry.

● Polarity check: Install correctly to avoid malfunctions.

● Avoid moisture/acids: Store in dry, mild environments.

● Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

Customization & Services

● Custom magnet size, shape, and coating (layers, thickness, color)

● Tailored magnetization direction and field strength

● Laser engraving service for logos or serial numbers

● Packaging and suction force testing for special applications
