custom high adhesive force stable small Disc neodymium Magnet

Custom high adhesive force stable small Disc neodymium Magnet

Understanding Neodymium Magnets

Neodymium (NdFeB) magnets are known for their exceptional magnetic strength, making them the strongest type of permanent magnet on the market. Their compact size allows them to deliver high magnetic force even in space-constrained applications. In construction, they help securely position metal components during assembly, while in the medical sector, they play a vital role in the consistent performance of imaging systems and sensitive equipment. From everyday home tasks to demanding industrial operations, these magnets ensure dependable, long-lasting functionality.

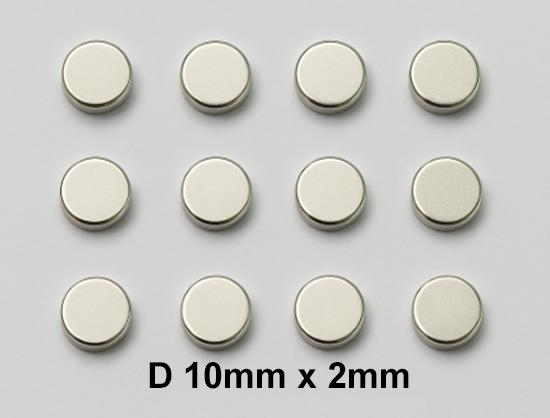

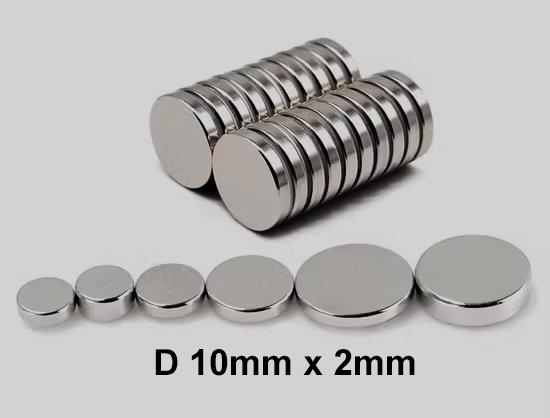

10mm x 2mm Neodymium Disc Magnets

These precision customized heat resistant high adhesive force stable small disc neodymium  magnets offer a powerful and compact magnetic solution for home projects, including creating magnetic fixtures, organising tools, or securing lightweight items. In the professional world, these tailor-made corrosion resistance high adhesive force stable compact disc neodymium magnets are crucial in manufacturing, engineering, and product design, where their magnetic strength and precision are essential for holding and positioning small components. Furthermore, they are used in the energy sector, particularly in the development of renewable energy devices, where their magnetic force contributes to efficient operation. These magnets are utilised across various industries, making them a reliable choice for both consumers and businesses.

Magnet Grade: N42

N42 grade neodymium magnets offer a balanced combination of strength and versatility, with a maximum energy product of around 42 MGOe. Well-suited for various applications including motors, sensors, and precision assemblies, they deliver consistent magnetic performance. Their reliable field strength makes them a preferred choice for consumer electronics and technical equipment alike. Widely adopted across industries, N42 magnets are valued for their dependable and efficient performance.

Surface Finish: Ni-Cu-Ni Coating

These high persormance high adhesive force strong small disc ndfeb magnets are finished with a durable triple-layer Ni-Cu-Ni (Nickel-Copper-Nickel) coating that enhances corrosion resistance and maintains a clean, professional look. This layered shield protects the magnet’s core from oxidation and wear in mildly humid environments, making them suitable for long-term use in a range of settings. For more aggressive environments, epoxy or other advanced coatings may offer enhanced protection.

APPLICATION EXAMPLES

Technical Parameters

Product Name: custom high adhesive force stable small Disc neodymium Magnet

Magnetic Grade: N42 (Br ≥ 13.5 kGs, Hcj ≥ 12 kOe)
Dimensions: D - 10x2mm (customizable)
Dimensional Tolerance: Length ±0.05mm, Width ±0.05mm, Thickness ±0.05mm
Operating Temperature: ≤80°C (high-temp version available)
Density: ≥7.5 g/cm³
Surface Magnetic Field: 2450 ±200 Gauss (measured with TM-801 Gauss meter)
Magnetic Flux: 2.3 mWb (measured with fluxmeter)

Manufacturing Process

The product is manufactured through the following key processes:

● A high-speed grinding wheel shapes the magnet's surfaces with tight dimensional tolerances.

● Coolant fluid is applied to control heat, reduce surface stress, and ensure a smooth finish.

● The result is a uniform, precisely dimensioned magnet with clean edges—ideal for high-performance applications.

This precision step is essential for ensuring that the final magnets meet strict quality standards for use in motors, sensors, electronics, and aerospace components

Surface Treatment & Plating

To enhance corrosion resistance and appearance:

Default Plating: Triple-layer Ni-Cu-Ni (customizable).

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm).

Optional Plating: Single-layer Zn (5μm) for cost-sensitive projects.

Features:

✔ Salt spray & oxidation resistance

✔ Increased surface hardness (scratch-resistant)

✔ Improved gloss (ideal for exposed components)

Appearance & Dimensional Inspection

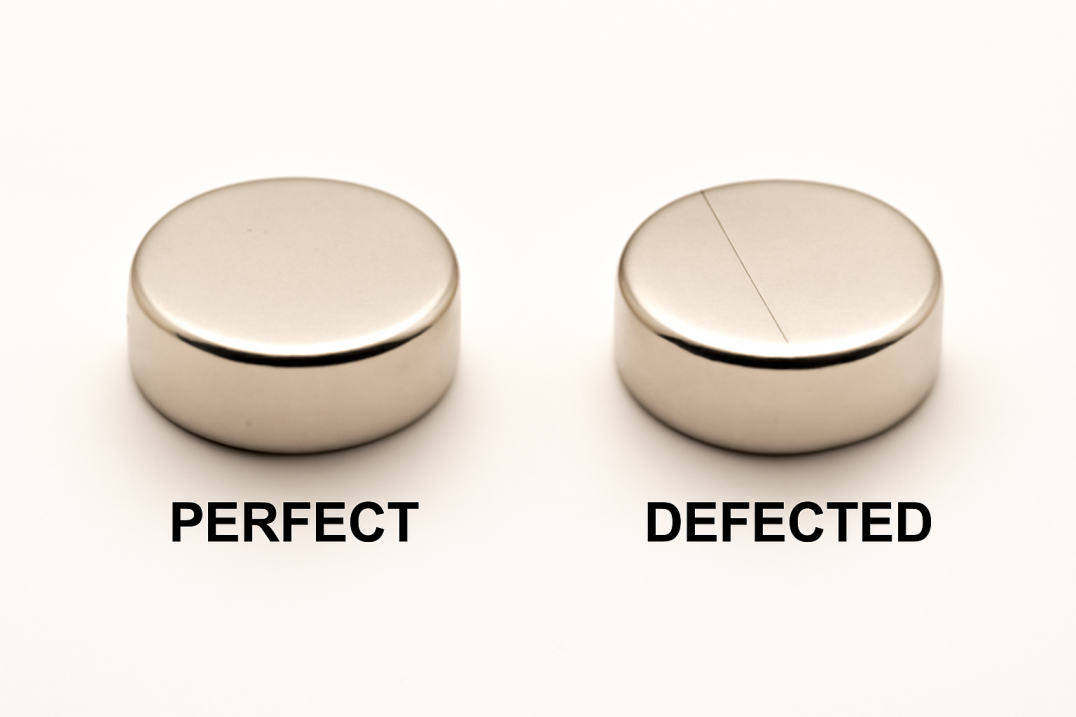

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation

Image Measurement System: High-res cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

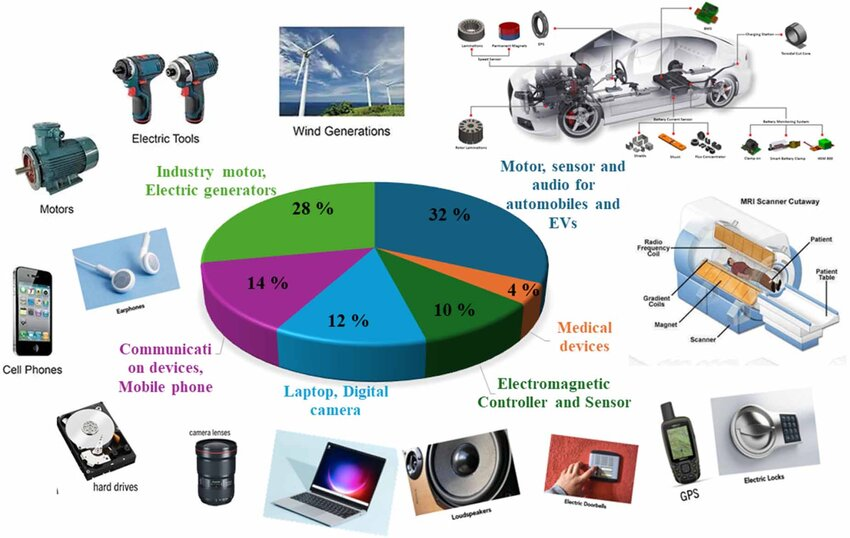

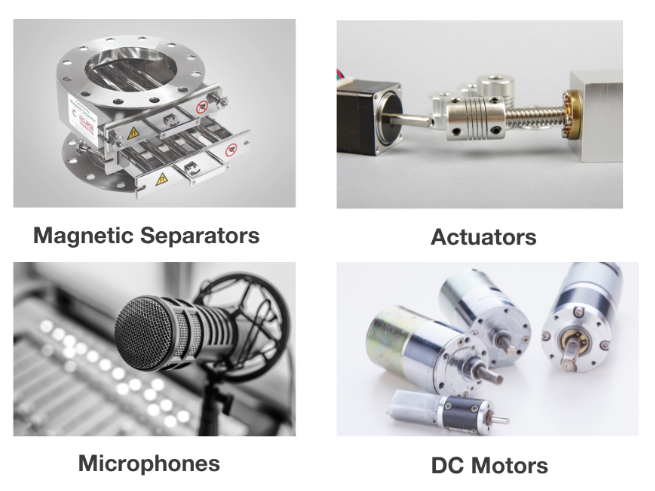

Applications

Electric Motors & Generators
Application: Precision-engineered magnets are employed in stators, rotors, and brushless DC motors to enhance magnetic flux density, efficiency, and torque performance.

Consumer Electronics
Application: High-performance neodymium magnets are integrated into speakers, haptic systems, vibration motors, and sensors, contributing to compact design and reliable functionality.

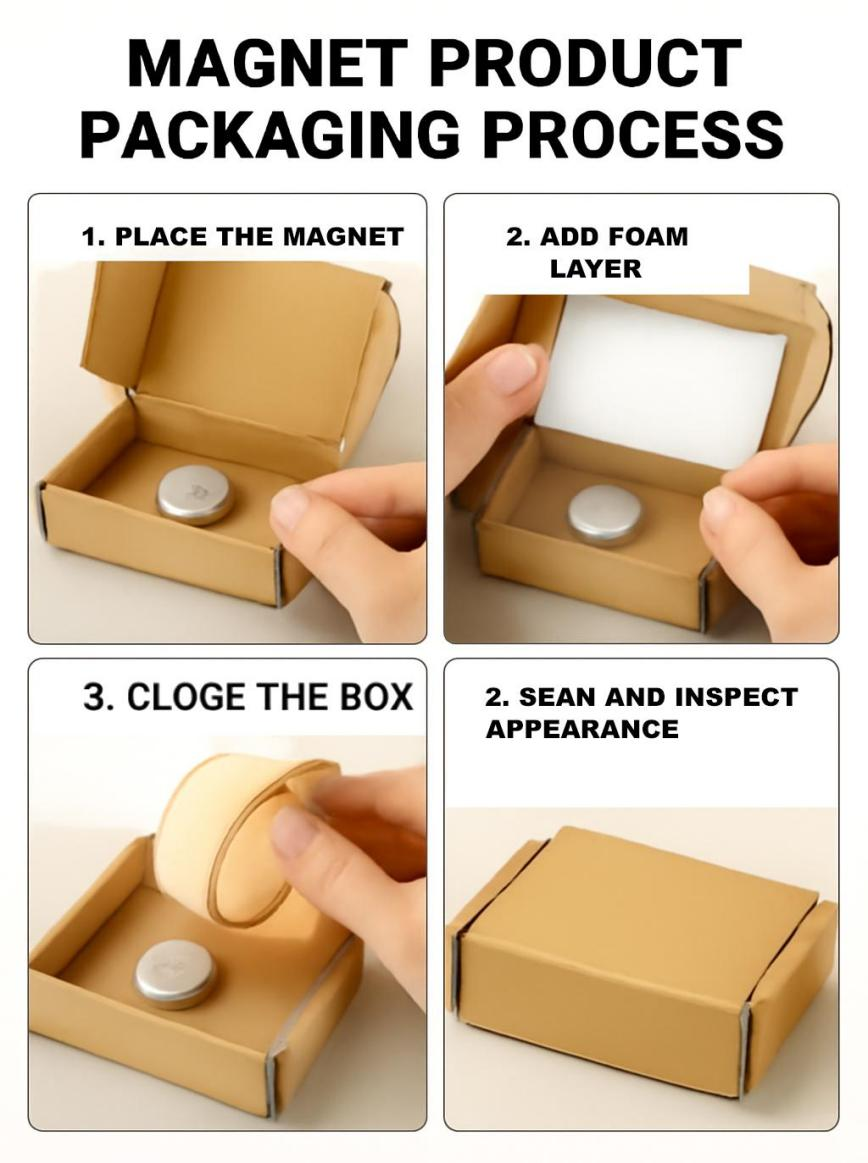

Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking cod

Frequently Asked Questions:

Q: How to choose the correct magnetization direction?

Axial Magnetization: Magnetic lines flow through thickness — best for concentrated fields

Radial Magnetization: Magnetic lines radiate outward — for uniform field distribution

Multipole Magnetization: Multiple poles along circumference — for complex fields (e.g., motors, sensors)

Q: What is the maximum working temperature of a ring magnet?

Standard N-series: up to 80°C

High-temp grades (SH/UH/EH): up to 150°C–230°C

Dysprosium-enriched formulations can further enhance temperature resistance

Q: Does magnetism decay over time?

Under normal conditions (room temp, dry, no heavy vibration), NdFeB magnets exhibit excellent time stability (<5% loss over 10 years). However, factors like:

● Temperature overrun

● Strong external magnetic fields

● Surface corrosion

● Mechanical impact may affect performance.

Customization & Services

● Custom magnet size, shape, and coating (layers, thickness, color)

● Tailored magnetization direction and field strength

● Laser engraving service for logos or serial numbers

● Packaging and suction force testing for special applications

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!
