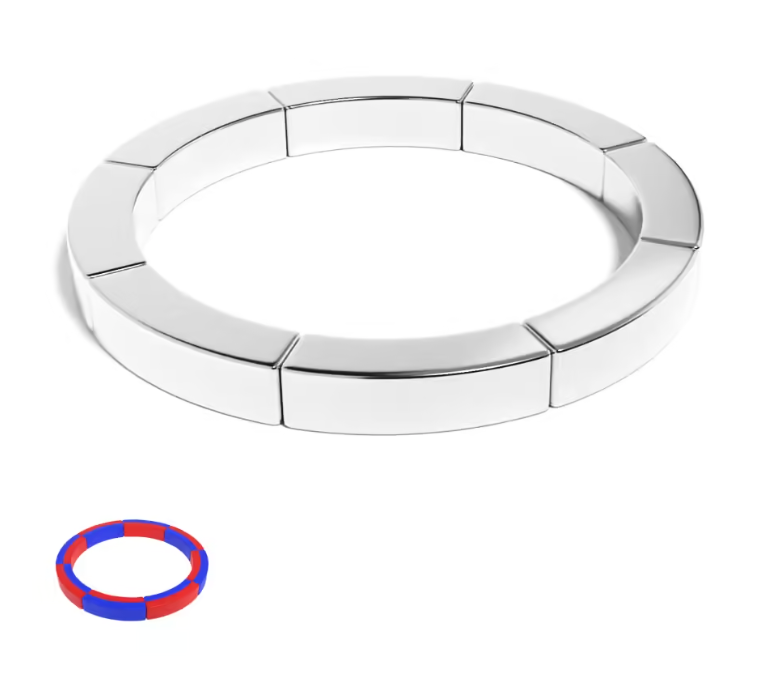

Custom high reliability vibration resistant full assembly neodymium Arc Magnet

2025-7-15

1. Product Overview & Application Scenarios

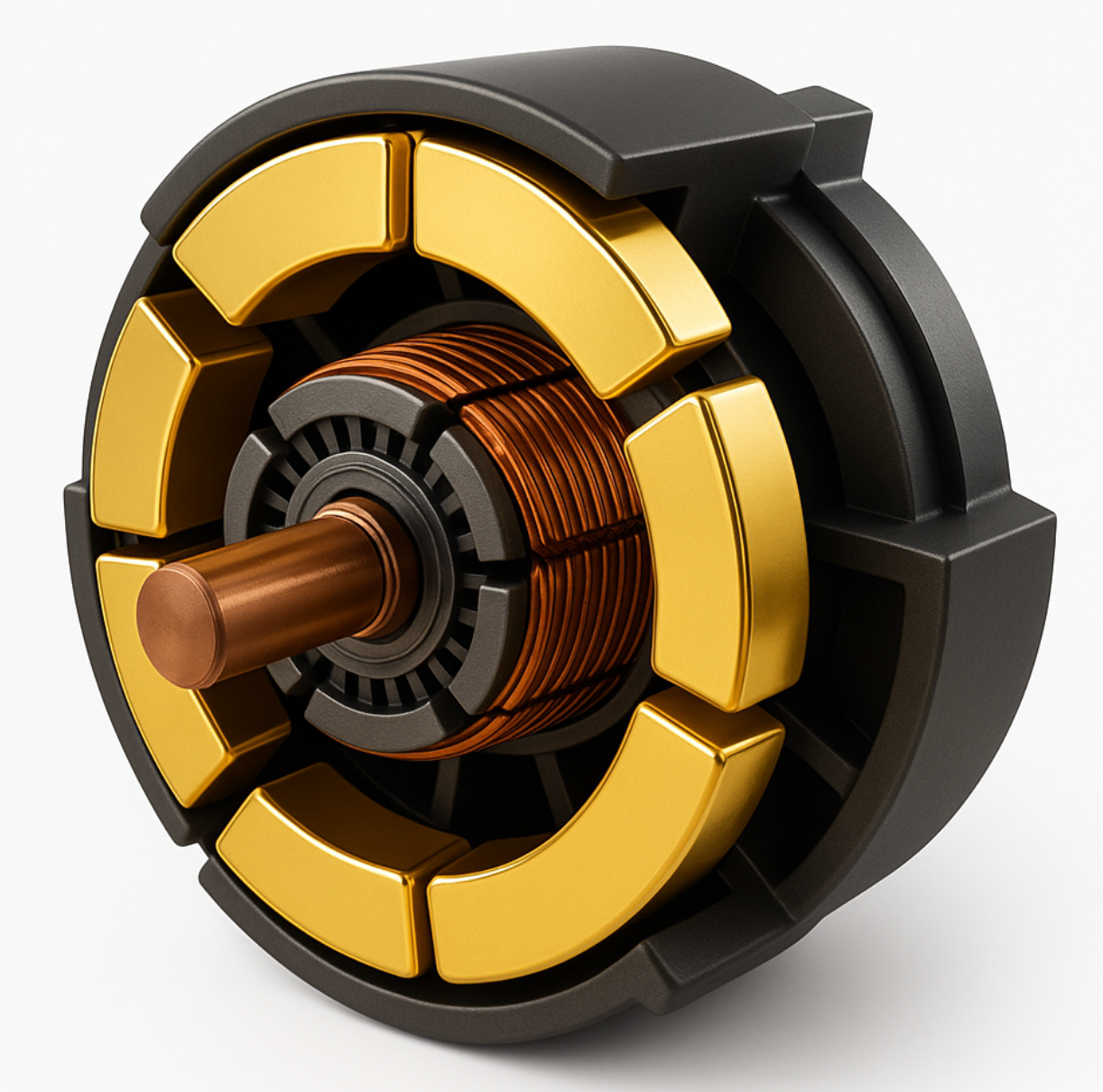

These precision customized high coercivity high reliability vibration resistant Full Assembly stable neodymium Arc Magnets  are precision-engineered to fulfill the exacting demands of applications requiring arched magnetic fields. This custom energy efficient high reliability vibration resistant Full Assembly neodymium Arc  Magnets’ crescent-shaped geometry plays a vital role in refining magnetic flux distribution within electric motors and generators, enabling more seamless and energy-efficient performance.

Within the automotive sector, these specialized high remanence high reliability vibration resistant Full Assembly neodymium Arc Magnet  serve as critical elements in electric and hybrid vehicle propulsion systems, where they contribute to minimizing torque ripple while boosting motor effectiveness. For industrial uses, tailor-made strong magnetic force high reliability vibration resistant Full Assembly neodymium Arc Magnets  are extensively employed in magnetic drive systems and rotational energy storage devices, with their contoured structure facilitating superior power transmission and diminished component degradation.

Moreover, these custom industrial use high reliability vibration resistant Full Assembly neodymium Arc Magnets are gaining prominence in sustainable energy solutions, particularly in wind power generation systems. Here, their consistent and dependable magnetic characteristics help optimize the transformation of kinetic energy into electrical output, demonstrating their versatility across advanced technological applications.

2. Technical Specifications

- Product Name: custom high reliability vibration resistant Full Assembly neodymium Arc Magnet

- Magnet Grade: N52 (Br ≥14.2 kGs, Hcj ≥12 kOe)

- Dimension: OD100mm x ID80mm x T10mm

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 3,500 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance this customized heat resistant high reliability vibration resistant permanent  Full Assembly neodymium Arc Magnet ‘s  corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

Coating Benefits:

Salt spray resistance and improved oxidation durability

Higher surface hardness and scratch resistance

Enhanced gloss, suitable for exposed parts

4. Appearance & Dimensional Inspection

The ways of inspecting this high coercivity precision tolerance premium strength strong rare earth Neodymium Cylinder Magnet’s appearance are as  following:

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.

Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

Magnetic Flux Consistency Test: Fluxmeters or Hall-effect testers measure magnetic flux across batches to ensure uniform performance in end-user applications.

6. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

7. FAQ

Q: How to choose the correct magnetization direction?

Axial Magnetization: Magnetic lines flow through thickness — best for concentrated fields

Radial Magnetization: Magnetic lines radiate outward — for uniform field distribution

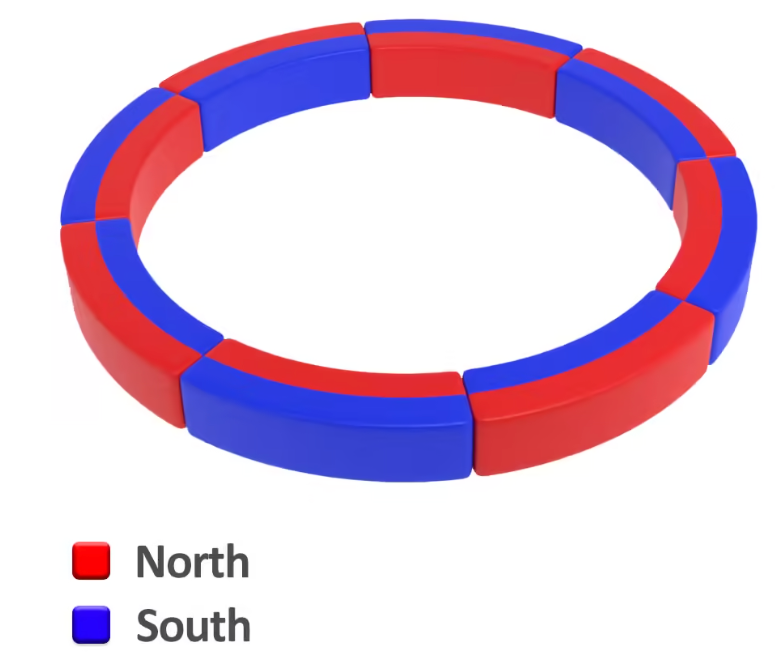

Multipole Magnetization: Multiple poles along circumference — for complex fields (e.g., motors, sensors)

Q: What is the maximum working temperature of a ring magnet?

Standard N-series: up to 80°C

High-temp grades (SH/UH/EH): up to 150°C–230°C

Dysprosium-enriched formulations can further enhance temperature resistance

Q: Does magnetism decay over time?
Under normal conditions (room temp, dry, no heavy vibration), NdFeB magnets exhibit excellent time stability (<5% loss over 10 years). However, factors like:

Temperature overrun

Strong external magnetic fields

Surface corrosion

Mechanical impact may affect performance.

 8.Why Choose us ？

Dongguan Jinconn New Materials Holdings Co., Ltd. is a publicly listed enterprise offering integrated R&D, manufacturing, and sales of rare earth magnets. Based in Xiaohe Industrial Zone, Daojiao Town, Dongguan, we serve clients across China and globally.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

9.  Usage Precautions？

Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.

Polarity check: Install correctly to avoid malfunctions.

Avoid moisture/acids: Store in dry, mild environments.

Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

10. Customization & Services

Custom magnet size, shape, and coating (layers, thickness, color)

Tailored magnetization direction and field strength

Laser engraving service for logos or serial numbers

Packaging and suction force testing for special applications
