High torque strong rare earth Neodymium Block countersunk Magnets

2025-7-11

1. Product Overview & Application Scenarios

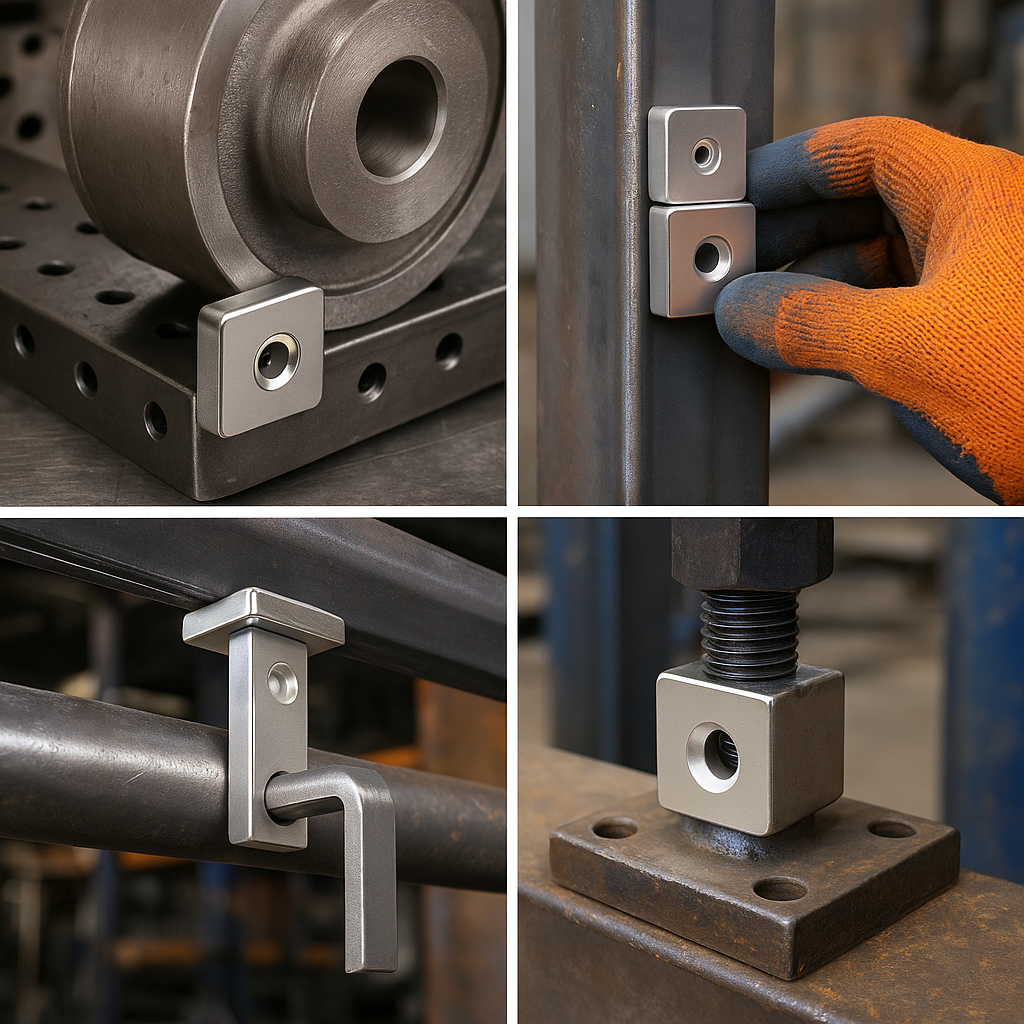

Highly versatile, these heat resistance permanent stable high torque strong rare earth Neodymium Block countersunk Magnets are excellent for both commercial and DIY applications. In industrial environments, these high torque strong rare earth Neodymium Block countersunk Magnets for wind turbine are frequently employed to fasten heavy-duty parts, mount metal fixtures, and stabilize equipment, delivering a dependable magnetic grip that endures tough conditions. Their durable construction also makes them well-suited for the construction sector, where they assist in anchoring structural components, bracing large metal beams, and forming secure magnetic locks. For household use, they are ideal for projects such as building magnetic shelving, organizing workshop tools, or anchoring heavy furniture. Their adaptability ensures they perform reliably in both professional and personal settings.

2. Technical Specifications

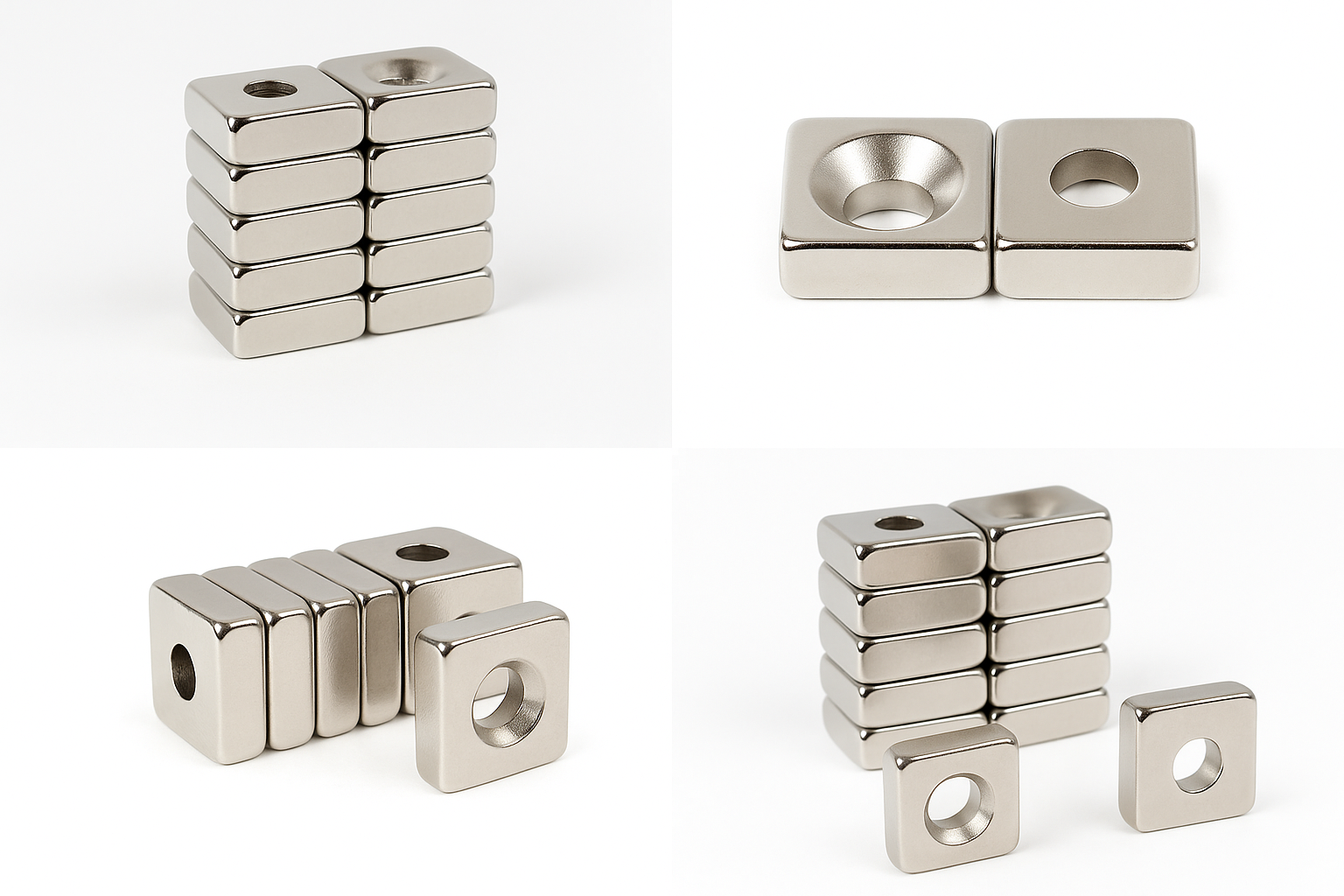

- Product Name:  High torque strong rare earth Neodymium Block countersunk Magnets

- Magnet Grade: N42 (Br ≥12.9 kGs, Hcj ≥12 kOe)

- Dimension: 10mm x 10mm x 4mm x (4mm Hole)

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 2,700 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance these precision customized 3M adhesive high torque strong rare earth Neodymium Block countersunk Magnets ‘corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

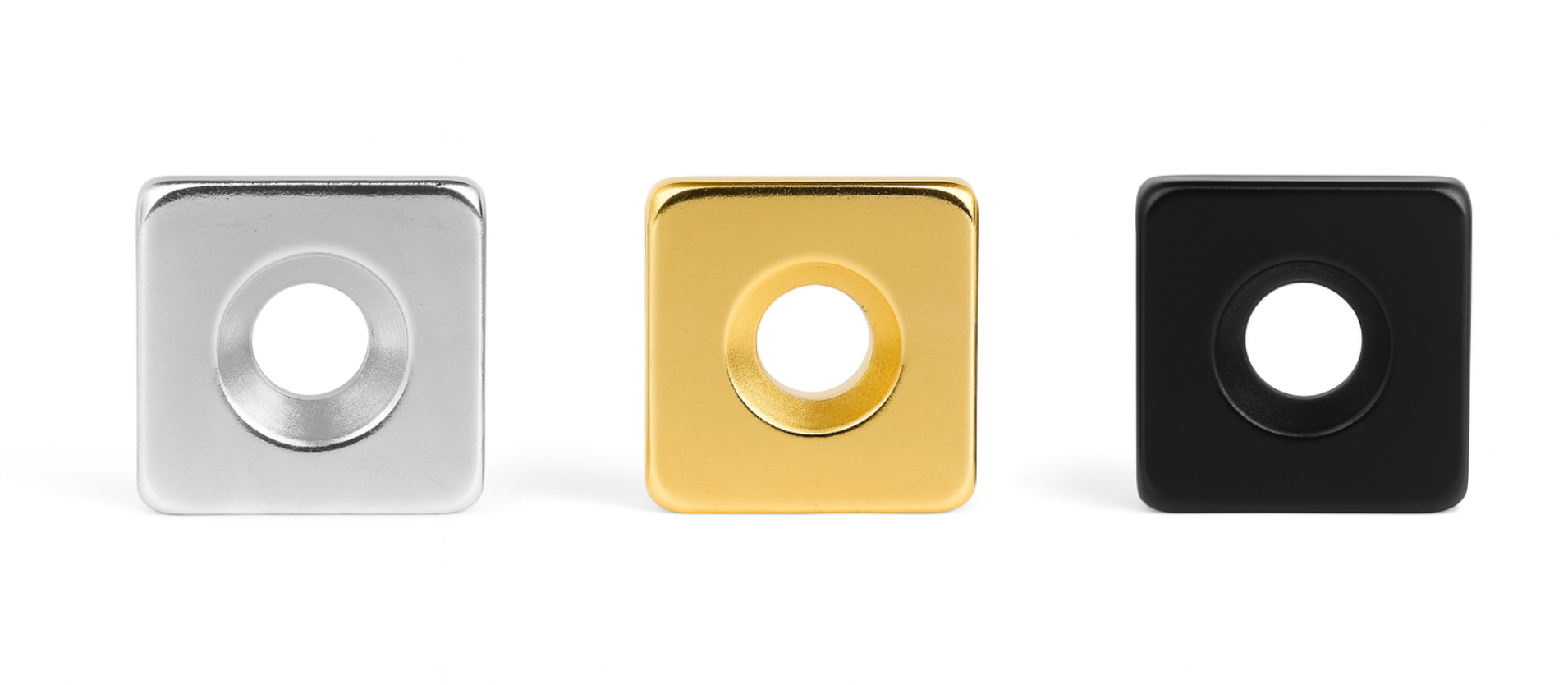

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

Coating Benefits:

Salt spray resistance and improved oxidation durability

Higher surface hardness and scratch resistance

Enhanced gloss, suitable for exposed parts

1. Appearance & Dimensional Inspection

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.

Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

5. Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

6. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

7. FAQ

Q: How to choose the correct magnetization direction?

Axial Magnetization: Magnetic lines flow through thickness — best for concentrated fields

Radial Magnetization: Magnetic lines radiate outward — for uniform field distribution

Multipole Magnetization: Multiple poles along circumference — for complex fields (e.g., motors, sensors)

Q: What is the maximum working temperature of a ring magnet?

Standard N-series: up to 80°C

High-temp grades (SH/UH/EH): up to 150°C–230°C

Dysprosium-enriched formulations can further enhance temperature resistance

Q: Does magnetism decay over time?
Under normal conditions (room temp, dry, no heavy vibration), NdFeB magnets exhibit excellent time stability (<5% loss over 10 years). However, factors like:

Temperature overrun

Strong external magnetic fields

Surface corrosion

Mechanical impact may affect performance.

8. Why Choose us ？

Dongguan Jinconn New Materials Holdings Co., Ltd. is a publicly listed enterprise offering integrated R&D, manufacturing, and sales of rare earth magnets. Based in Xiaohe Industrial Zone, Daojiao Town, Dongguan, we serve clients across China and globally.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

9.  Usage Precautions？

Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.

Polarity check: Install correctly to avoid malfunctions.

Avoid moisture/acids: Store in dry, mild environments.

Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

10. Customization & Services

Custom magnet size, shape, and coating (layers, thickness, color)

Tailored magnetization direction and field strength

Laser engraving service for logos or serial numbers

Packaging and suction force testing for special applications

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!
