Powerful permanent Black epoxy coated bar Countersunk Neodymium Magnets

2025-7-11

1. Product Overview & Application Scenarios

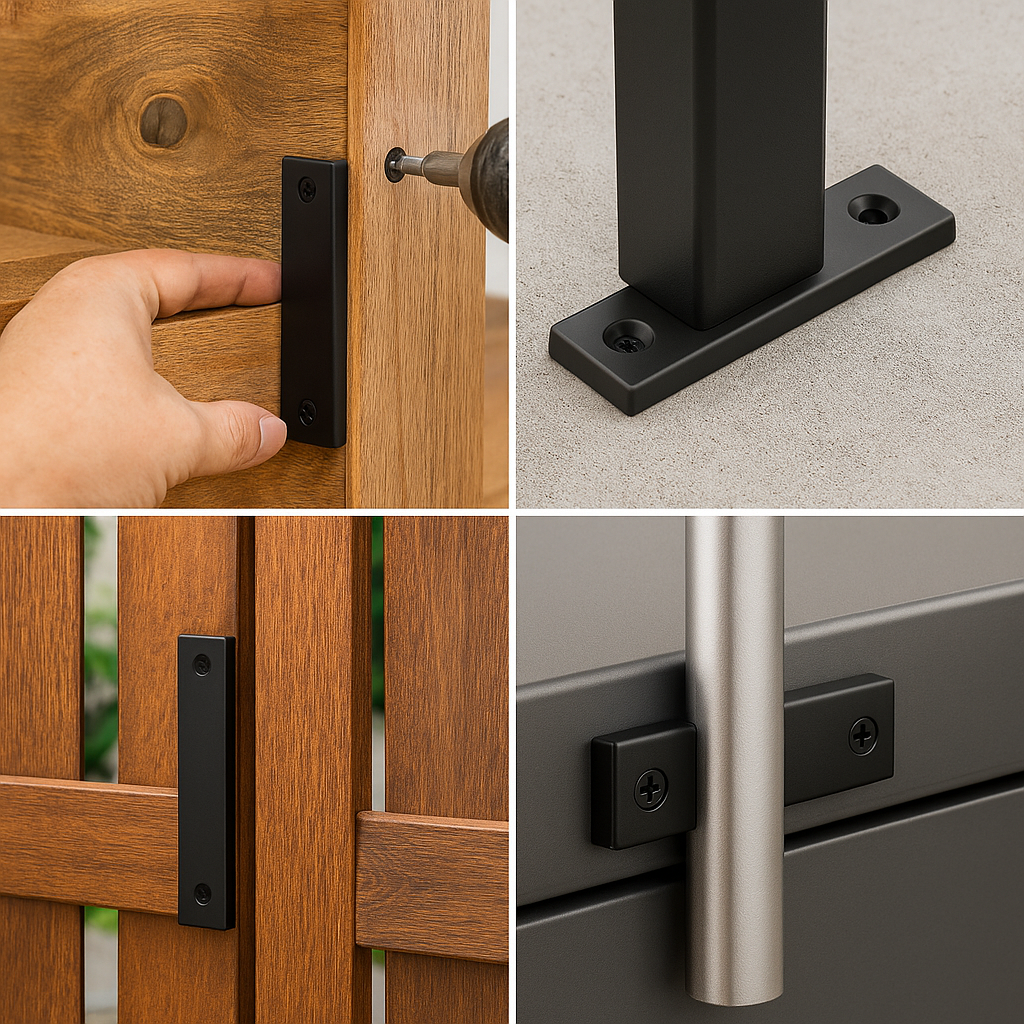

These strong magnetic force heavy-duty permanent Black epoxy coated bar Countersunk Neodymium Magnets  provide industrial-level magnetic force, serving as the preferred choice for rigorous applications. In marine construction and offshore engineering, they play a vital role in fastening substantial steel plates and crucial components. Their outstanding magnetic properties prove equally valuable in robotic production facilities, where massive metallic pieces require unwavering stability during high-precision operations. DIY enthusiasts benefit from their superior strength when building reinforced workstations, heavy-duty shelving units, and high-security installations that conventional magnets couldn't support.

2. Technical Specifications

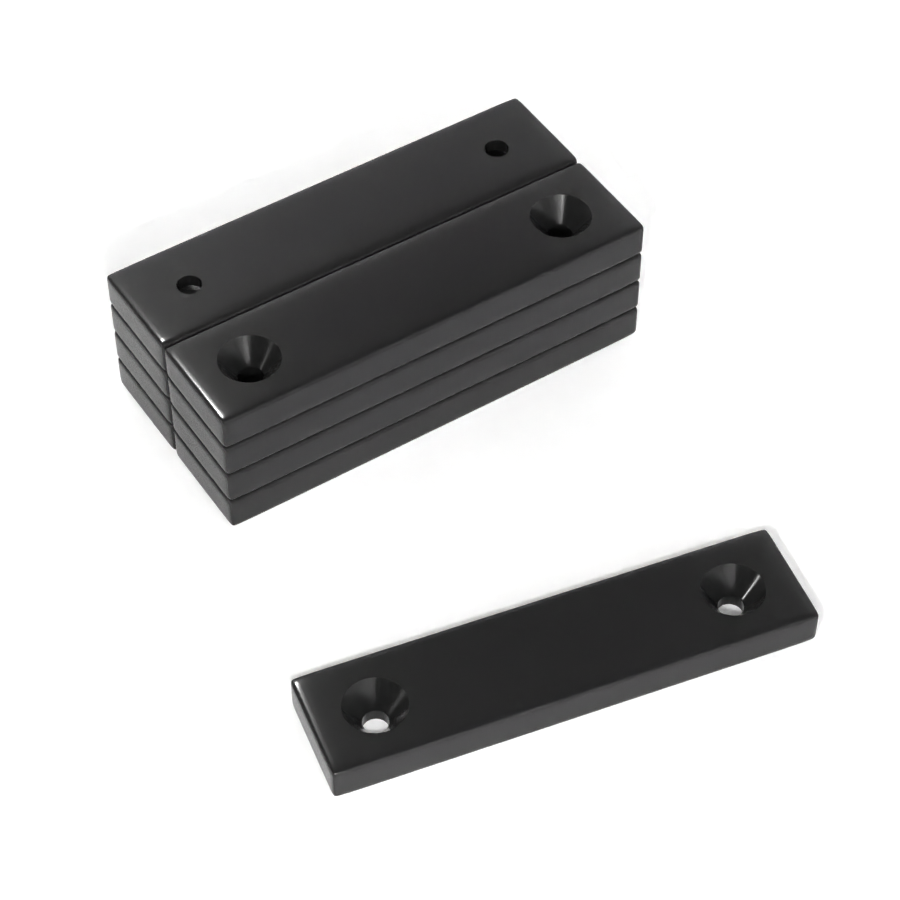

- Product Name: powerful permanent Black epoxy coated bar Countersunk Neodymium Magnets

- Magnet Grade: N52 (Br ≥14.2 kGs, Hcj ≥12 kOe)

- Dimension: 50mm x 12mm x 4mm

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 2,800 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance these high coercive  powerful permanent Black epoxy coated bar Countersunk Neodymium Magnets’ corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

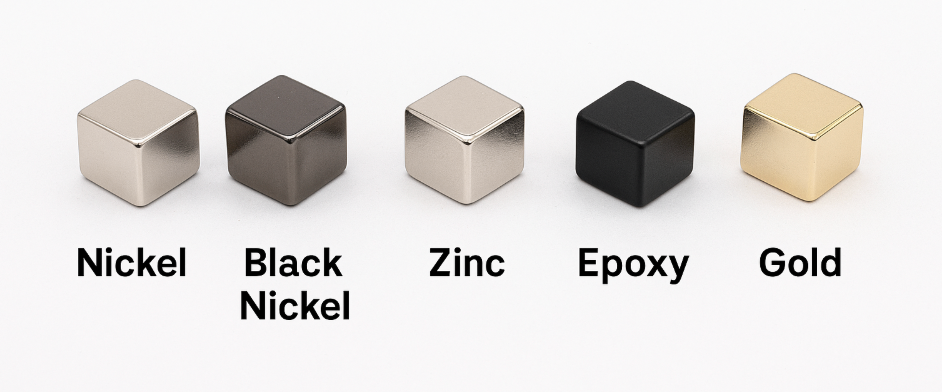

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

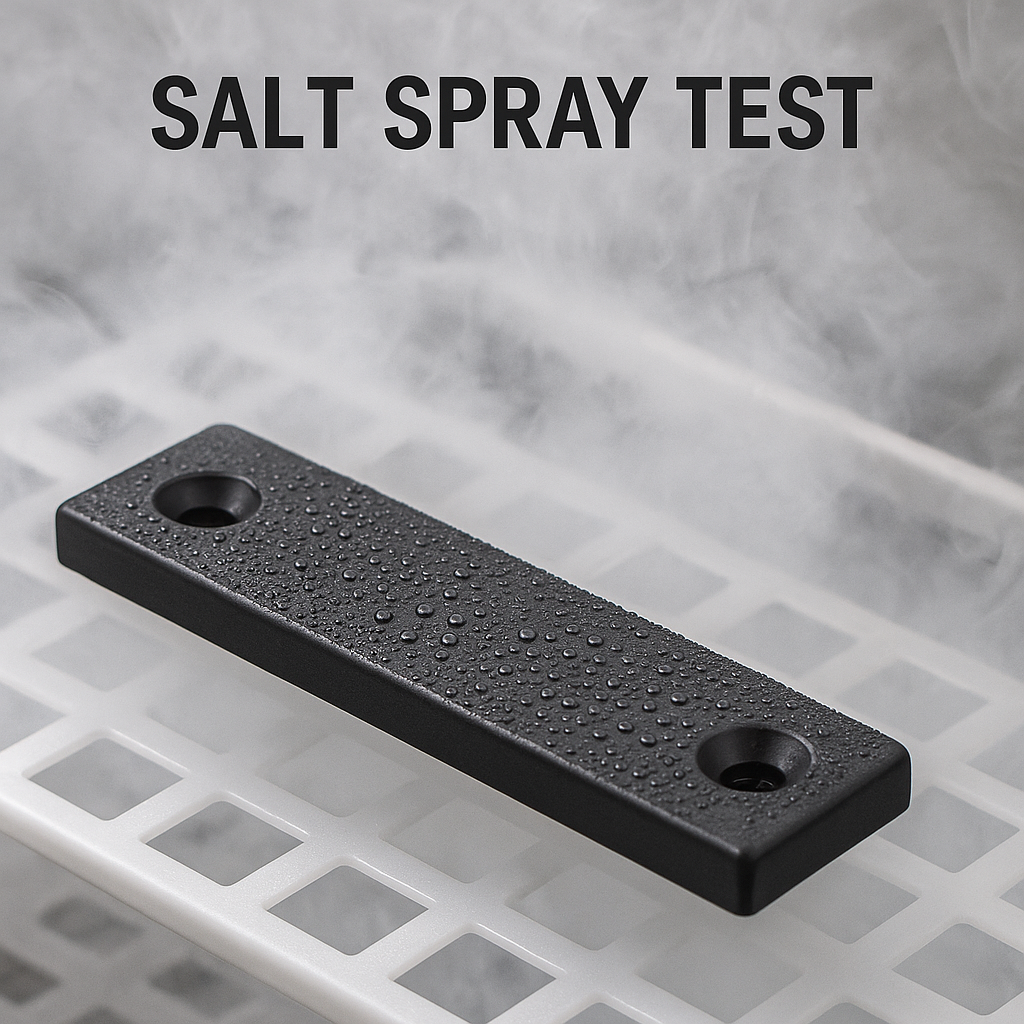

Salt spray resistance and improved oxidation durability

Higher surface hardness and scratch resistance

Enhanced gloss, suitable for exposed parts

4. Appearance & Dimensional Inspection

Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.

Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.

Automated Intelligent Inspection: High-speed cameras with AI algorithms detect and reject defects (e.g., cracks, scratches, discoloration) and dimensional anomalies, improving yield and reducing human error.

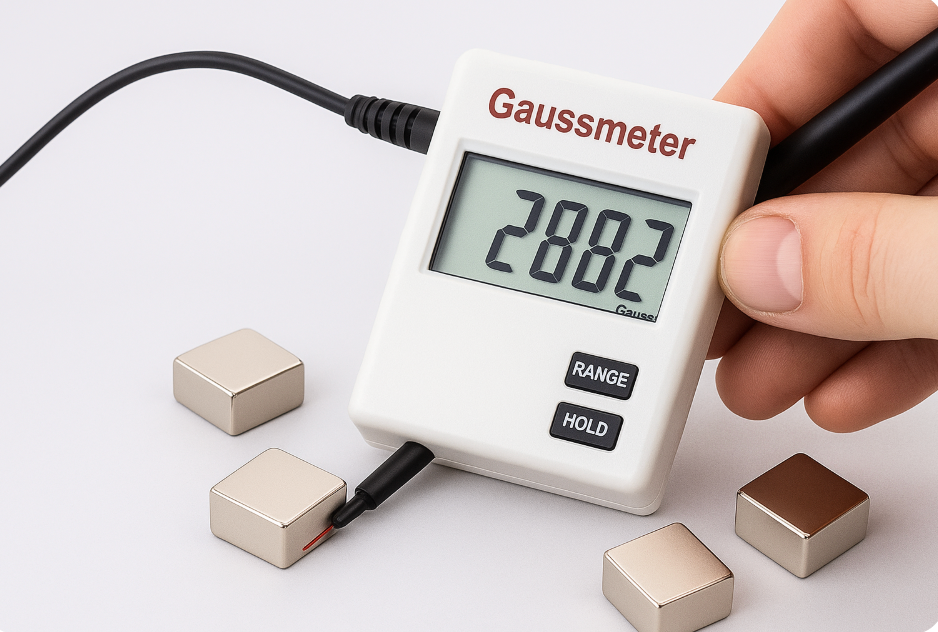

Magnetic Flux Consistency Test: Fluxmeters or Hall-effect testers measure magnetic flux across batches to ensure uniform performance in end-user applications.

5. Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

6. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

We understand logistics is more than just transport — it's about your commitment and customer satisfaction. Our solutions offer:

Global logistics support

End-to-end visual tracking

Multiple layers of transport safety

One-on-one customer service for tailored shipping plans

With our reliable land, sea, and air logistics network, we empower your business to go further and soar higher.

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!.

7.  Usage Precautions？

Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.
Polarity check: Install correctly to avoid malfunctions.
Avoid moisture/acids: Store in dry, mild environments.
Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.

 8.Customization & Services

Custom magnet size, shape, and coating (layers, thickness, color)

Tailored magnetization direction and field strength

Laser engraving service for logos or serial numbers

Packaging and suction force testing for special applications

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!
