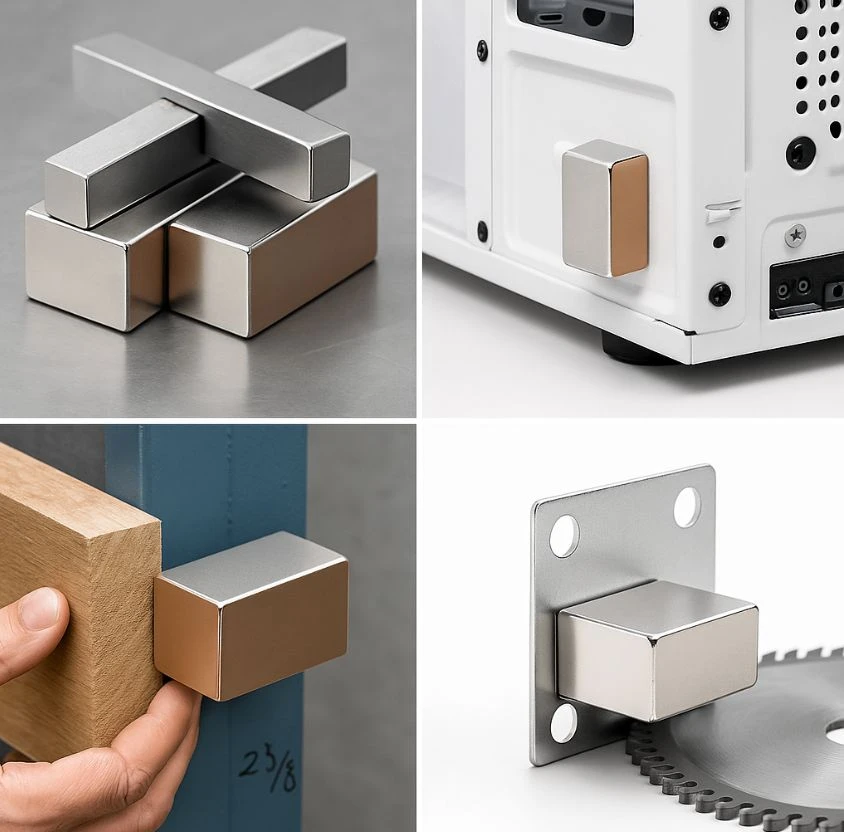

Product Overview & Application Scenarios

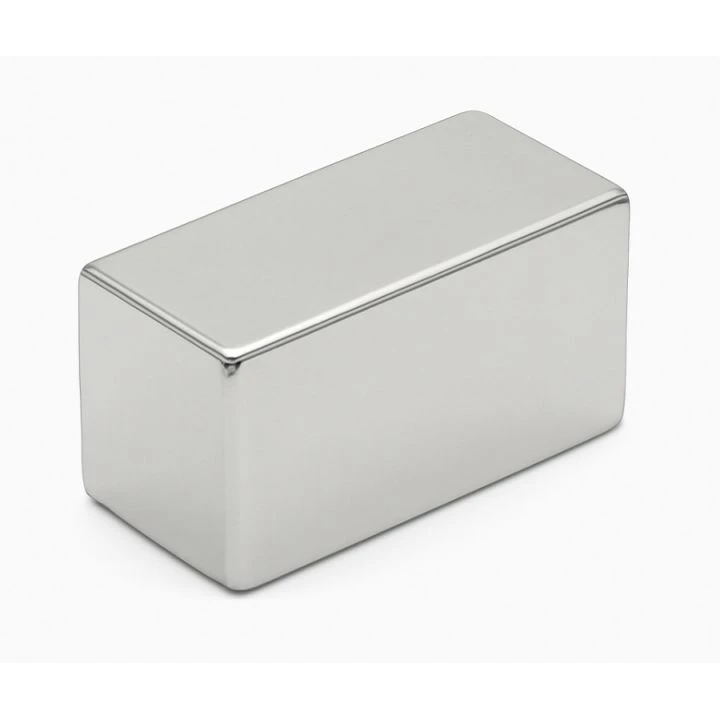

This industrial grade Tight tolerance High quality rectangular permanent adhesive bar magnet measures 45mm in length, with a width and thickness of 25mm each. It can be magnetized along its length, width, or thickness to suit your specific needs. The standard N35 to N54 grades have a maximum operating temperature of 80°C. For applications in higher temperature environments of 150°C, 180°C, or 200°C, please select the SH, UH, or EH performance grades accordingly.
Technical Specifications
|
Product Name |
Adhesive bar magnets |
|
Magnet Grade |
N54 (Br ≥14.9 kGs, Hcj ≥12 kOe) |
|
Dimension |
45mm x 25mm x 25mm |
|
Dimensional Tolerance |
+/-0.05 |
|
Operating Temperature |
≤80°C (High-temp versions available) |
|
Density |
≥7.5 g/cm³ |
|
Surface Magnetic Field |
3,800 Gs |
|
Magnetic Flux |
2.0 mWb (Fluxmeter-tested) |
N54 Magnet Performance Overview
General Introduction
N54 is one of the highest energy grades available for sintered NdFeB (Neodymium Iron Boron) magnets. It is designed for applications requiring maximum magnetic strength in limited space.
Key Performance Characteristics
Very High Magnetic Energy
N54 offers an extremely high maximum energy product, enabling strong magnetic force in compact designs.
01
Excellent Holding Force
Provides superior pull force compared to lower grades, ideal for high-performance applications.
02
High Remanence (Br)
Strong residual magnetism ensures stable and powerful magnetic output.
03
Compact and Lightweight Design Advantage
Allows reduction of magnet size while maintaining the same or higher performance.
04
Room-Temperature Application Focus
Best suited for applications operating at or near ambient temperatures.
05
▼ Summary
With its outstanding magnetic strength and space-saving advantages, N54 is an ideal choice for demanding applications where maximum performance is required within minimal volume.

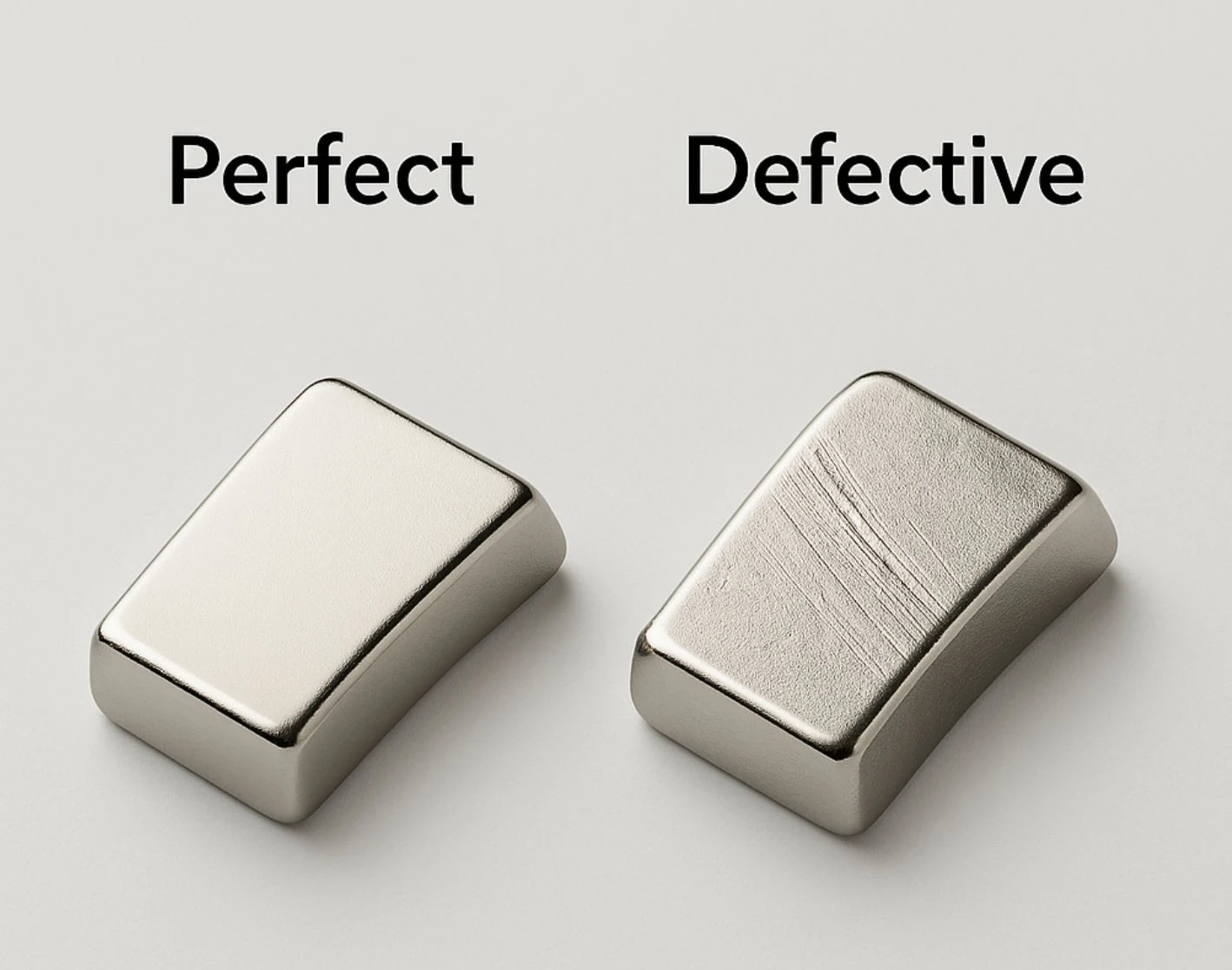

Appearance & Dimensional Inspection
- Visual inspection for cracks, chips, edge damage, and coating defects
- Surface finish checked for scratches, peeling, blistering, or discoloration
- Dimensions measured using calibrated tools (calipers, micrometers, gauges)
- Measurements verified against approved drawings and tolerances
- Nonconforming parts identified and segregated

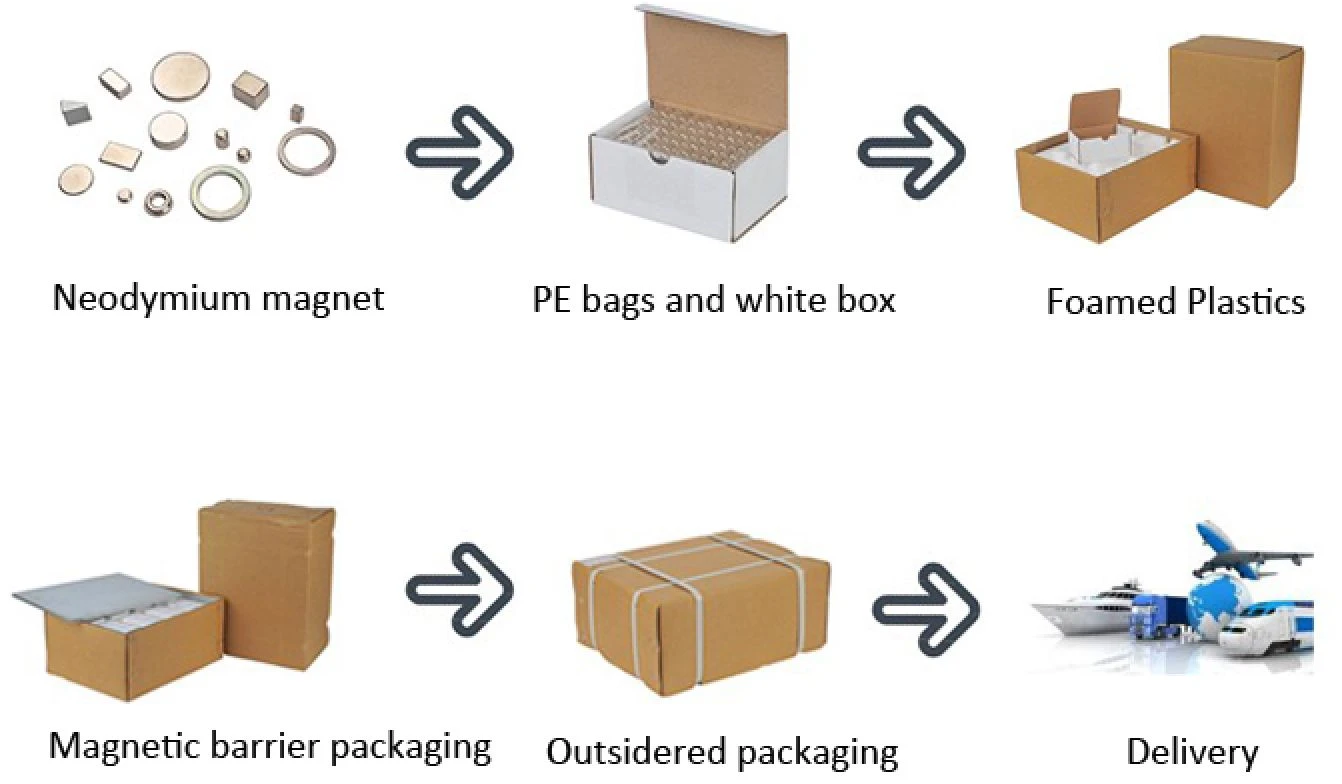

Packaging & Transportation
- Magnet separation and surface protection
- Inner packing with cushioning materials
- Magnetic shielding when required
- Reinforced outer carton or case
- Secure sealing and labeling
We understand logistics is more than just transport - it's about your commitment and customer satisfaction. Our solutions offer:
- Global logistics support
- End-to-end visual tracking
- Multiple layers of transport safety
- One-on-one customer service for tailored shipping plans
With our reliable land, sea, and air logistics network, we empower your business to go further and soar higher.
FAQ
Q1. What causes localized demagnetization rather than uniform loss?
Answer:Localized demagnetization occurs due to non-uniform reverse fields, temperature gradients, or geometric stress points. These localized losses often degrade system performance before global magnet weakening is detected.
Q2. How does magnetization field strength relate to full saturation?
Answer:Insufficient magnetizing field results in incomplete domain alignment. Full saturation requires magnetizing fields significantly higher than intrinsic coercivity, especially for high-Hcj grades.
Q3. Why does radial magnetization exhibit higher field deviation risk?
Answer:Radial magnetization relies on complex tooling and precise field symmetry. Small tooling or alignment errors cause angular field distortion, which directly affects motor efficiency and sensor accuracy.
